Reliability & Fault Tolerance: Failing Without Falling

Last lesson gave you the scoreboard: availability, the nines, the fact that 99.9% is 44 minutes of downtime a month. But a scoreboard doesn't win the game. This lesson is the game — how you actually keep the number up when things break. And the first thing to accept, the thing that separates senior engineers from everyone else, is this:

Failures are not rare surprises you'll deal with later. They are constant inputs you design for from the start.

At any real scale, something is always broken. A disk is dying, a network link is flapping, a dependency is timing out, a deploy went sideways, a machine just vanished. Amazon's CTO Werner Vogels put it bluntly: "Everything fails, all the time." The junior instinct is to build the happy path and bolt on error handling when an incident forces it. The senior instinct is to assume every component will fail and ask, up front, "when this dies, what happens to everything else?"

That question has two possible answers, and the entire craft of reliability lives in the gap between them. One failure can bring down your whole system — a catastrophe. Or it can be contained, degraded, and recovered — a shrug. This lesson is about the toolkit that turns the first into the second: timeouts, retries done right, circuit breakers, bulkheads, and graceful degradation. By the end you'll be able to look at any architecture and see where one sick component would take everything with it — and how to stop it. Let's start by naming exactly what we're fighting.

These two words get used interchangeably, and getting them straight sharpens everything that follows.

• Availability (last lesson) is about uptime — what fraction of the time is the system responding at all?
• Reliability is broader — what's the probability the system does the correct thing, consistently, including when parts of it are failing? An available system that returns wrong or corrupt answers is up, but it is not reliable.
• Fault tolerance is the how: the ability to keep serving — perhaps in a reduced form — when components fail. It's the machinery that buys you both availability and reliability under stress.

It also helps to be precise about the word "failure," because engineers who confuse these levels fix the wrong thing. There's a clean chain:

A fault is a defect — a bug, a dead disk, a saturated link. When that fault gets exercised it produces an error — a wrong internal state. If nothing catches the error, it becomes a failure — the system visibly does the wrong thing and a user is affected.

Fault tolerance is the art of stopping a fault before it graduates into a failure — of catching the error and containing it so the blast never reaches the user. A disk dies (fault), a replica has stale data (error), but the user's request is served correctly from another replica (no failure). That containment is the whole ballgame — and the thing that most often breaks it is a pattern with a name.

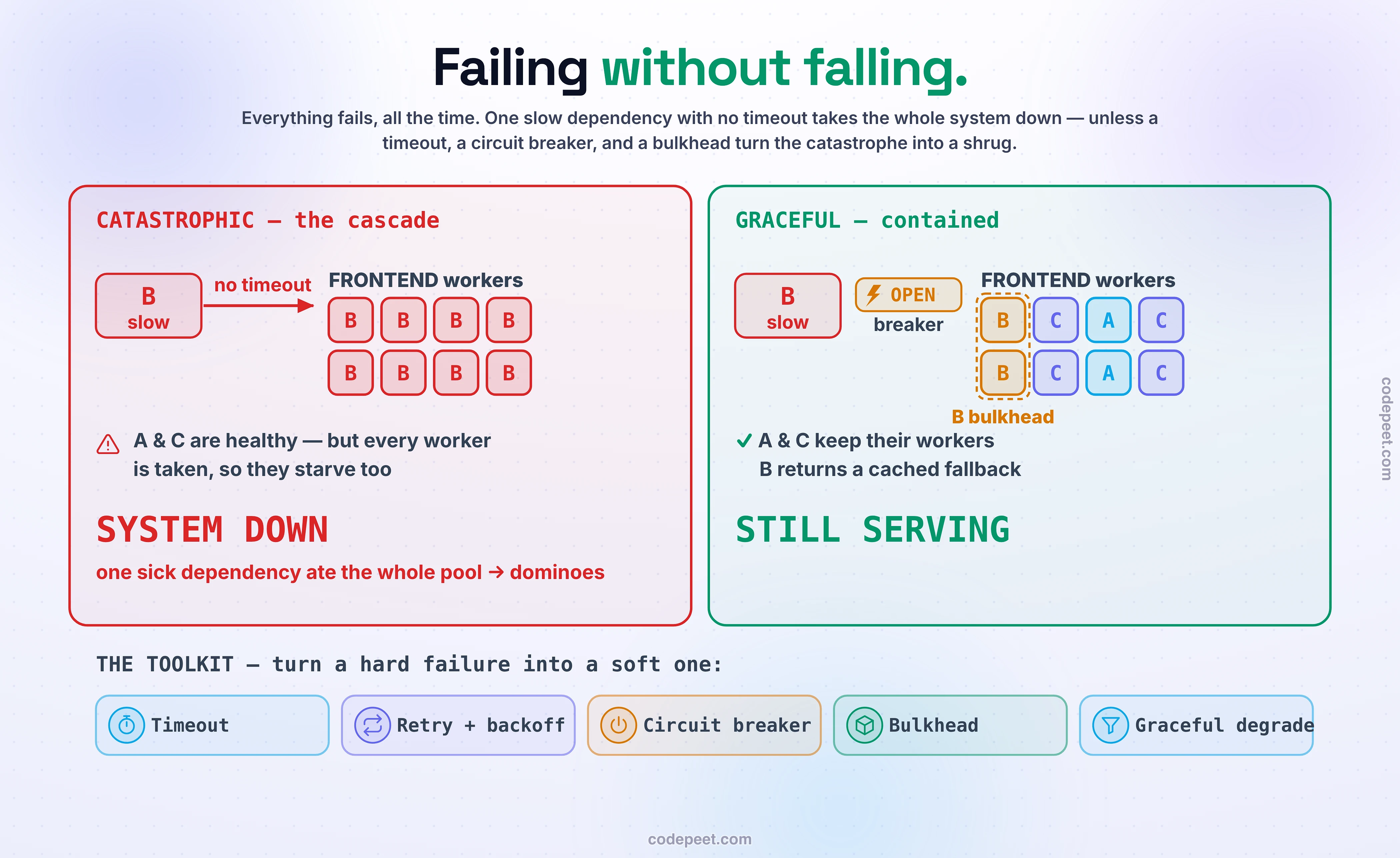

Here's how one small failure eats an entire healthy system — the pattern every mechanism in this lesson exists to prevent.

Picture a frontend service. Like every server (remember §2), it has a fixed pool of workers — say eight threads — and each incoming request grabs a worker until it's done. Most requests call one of three downstream dependencies: A, B, and C. All is well.

Now dependency B gets slow. Not dead — slow. It starts taking 30 seconds to respond instead of 30 milliseconds. And crucially, the calls to B have no timeout. Watch what happens, step by step:

1. A request needing B grabs a worker and waits — 30 seconds, holding that worker the whole time.
2. More B-requests arrive. Each grabs a worker and waits. One by one, workers get stuck on B.
3. Within seconds, all eight workers are blocked waiting on B.
4. Now a request comes in for A — which is perfectly healthy. But there's no worker free to handle it. It queues. It fails.

The result is the thing that keeps engineers up at night: your entire system is down — even the parts that never depended on B — because one sick component quietly ate every worker you had. A system that was 99.99% healthy is now 100% down, brought there by a single slow dependency. This is a cascading failure, and it spreads like dominoes: B's sickness becomes the frontend's sickness, which becomes its callers' sickness, all the way up.

The insight that unlocks the whole toolkit: the enemy isn't that B failed — it's that B's failure was allowed to consume a shared, limited resource (your workers). Every mechanism that follows is a different way to stop that from happening. Start with the simplest and most important one.

The cascade above happened for one reason: the frontend was willing to wait forever. So the first and most important rule of fault tolerance is almost embarrassingly simple:

Every remote call gets a timeout. Never wait forever.

A timeout says "if B hasn't answered in, say, one second, give up, free the worker, and fail this one request." With a one-second timeout, a stuck worker is freed in one second instead of thirty — the pool drains as fast as it fills, and healthy requests for A and C keep getting workers. You've turned a system-ending cascade into a handful of failed B-requests. A missing timeout is the single most common root cause of cascading failure in the wild.

This exposes a truth that surprises people: a slow dependency is usually worse than a dead one. A dead dependency fails fast — the connection is refused instantly, the worker is freed instantly. A slow one holds a worker hostage for the full timeout on every single request, which is exactly how pools get exhausted. So a huge amount of reliability engineering is about deliberately failing fast — converting slow, resource-hogging failures into quick, clean ones.

One subtlety worth knowing: timeouts must be chosen with the whole chain in mind. If your frontend times out after 1 second but keeps calling a backend that itself waits 10 seconds, you've done work that gets thrown away. Timeouts should generally get tighter as you go deeper, and every call needs both a per-attempt timeout and an overall deadline. Bound everything.

Many failures are transient — a brief network blip, a leader election, a momentary overload. For these, simply trying again is the right fix, and retries can dramatically improve reliability. But retries are the most dangerous tool in the box, because done naively they don't just fail to help — they amplify the outage.

Imagine the failing service from before, and every client set to retry immediately, forever. The instant that service gets slow, thousands of callers start hammering it with retries — on top of the normal traffic. The struggling service, which just needed a moment to breathe, is instead hit with a synchronized flood that exhausts its threads and memory and knocks it flat again the moment it tries to recover. The industry has a name for this self-inflicted disaster: a retry storm (or "thundering herd"). Your recovery mechanism became your DDoS.

Safe retries need four guardrails, and you should reach for all of them:

• Exponential backoff — wait longer between each try (1s, 2s, 4s, 8s), so you're not hammering.
• Jitter — add randomness to those delays. Without it, thousands of clients back off in lockstep and all retry at the exact same instant — the herd, re-formed. Jitter spreads them out.
• A cap — never retry infinitely. Three to five attempts, then give up. Infinite retries guarantee resource exhaustion.
• Idempotency — only safe to retry an operation if doing it twice is harmless. Retrying "charge the card" without an idempotency key double-charges the customer. Make operations idempotent before you make them retryable.

And a level up: a retry budget caps total retry traffic to, say, 10–20% of normal load — when the budget's spent, you fail fast instead of retrying, protecting the thing you'd otherwise stampede. The rule of thumb: retries help you survive someone else's small hiccup; without guardrails they turn your hiccup into everyone's catastrophe.

Timeouts free a worker after each failed call — but if a dependency is thoroughly down, why keep calling it at all? Every doomed call still costs you a worker for the full timeout, and it keeps kicking a service that's trying to get up. The fix is borrowed straight from your house's electrical panel: a circuit breaker.

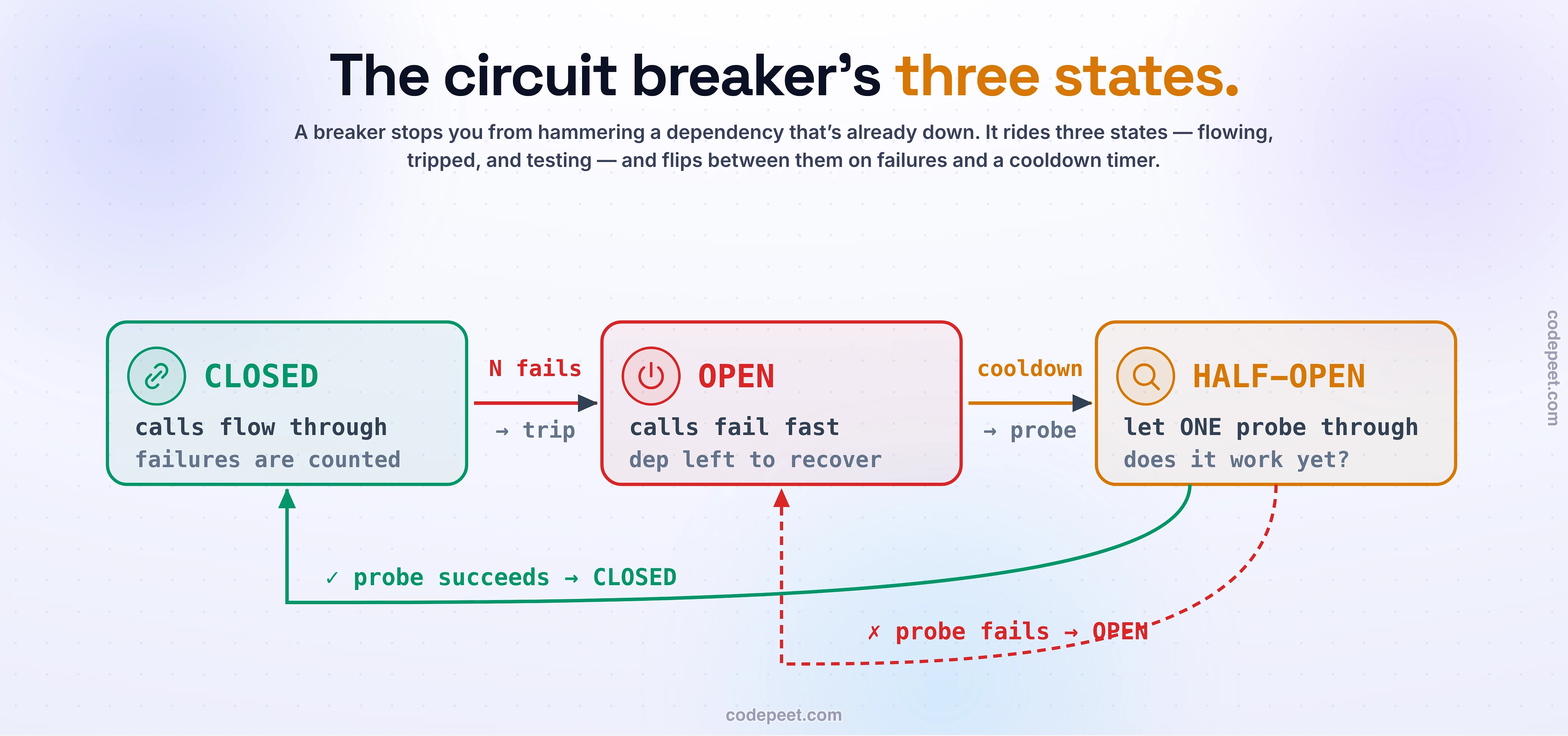

It's a small state machine that wraps a dependency and watches its failures:

• CLOSED (normal): calls flow through to the dependency as usual. The breaker just counts successes and failures.
• OPEN (tripped): once failures cross a threshold — a common default is 50% errors over a 10-second window — the breaker trips open. Now every call to that dependency fails instantly with a fallback, without even trying. No worker is held, no doomed request is sent. The dependency gets breathing room to recover, and your workers stay free for everyone else.
• HALF-OPEN (testing): after a cool-down, the breaker lets a few probe requests through. If they succeed, the dependency is healthy again → back to CLOSED. If they fail, → back to OPEN for another cool-down.

The house analogy is exact: when a fault would fry your wiring, the breaker trips to protect the whole house; you flip it back on only once it's safe — and it won't slam shut onto a live short, which is precisely what "half-open" prevents. A circuit breaker's real magic is that it converts a slow, cascading failure into a fast, contained one: instead of thousands of requests each timing out over a full second, they fail in microseconds with a sensible fallback. This — the cascade, and the breaker that stops it — is the thing to drive with your own hands.

This is the core of the whole lesson, and it's meant to be felt. Below is a live frontend with a fixed pool of workers, serving a stream of requests to three dependencies — A and C are healthy; B is yours to break.

Start with everything off. Hit 💥 Break B and watch the disaster unfold on its own: requests to B grab workers and hang, the pool fills red one slot at a time, the queue backs up, and within seconds even requests for the perfectly healthy A and C can't get a worker — the whole system reads DOWN. You just caused a cascading failure with one click.

Now dismantle it, one mechanism at a time, and watch the same broken B produce a smaller and smaller dent:

• Timeout — stuck workers give up after a second; the pool stops filling.
• Circuit breaker — after enough failures it trips open, B's calls fail instantly, and the workers empty out. Watch the state badge flip CLOSED → OPEN → HALF-OPEN as B recovers.
• Bulkhead — B gets its own tiny pool, so it can never eat the workers A and C need.
• Fallback — B returns a default, so its requests come back degraded instead of failed.

Flip them all on, break B again, and see the system stay HEALTHY. Same failure, opposite outcome — that gap is the entire craft.

The circuit breaker fixed the failure once you knew which dependency was sick. But there's an even more fundamental defense — one that contains a failure before you've diagnosed it — borrowed from shipbuilding: the bulkhead.

A ship's hull is divided into sealed, watertight compartments. Puncture one and it floods — but the bulkheads keep the water there, and the ship stays afloat. Apply the same idea to resources: instead of one shared pool of eight workers that any dependency can consume, give each dependency its own small, isolated pool. Dependency B gets two workers of its own; A and C get their own. Now when B hangs, it can exhaust at most two workers — its own compartment floods, but A and C sail on with their reserved capacity. The failure is contained by construction, before any breaker even trips.

This is why serious systems isolate resources along fault lines: separate thread pools and connection pools per dependency, background jobs kept off the pool that serves users, even separate "cells" or partitions of the whole system so one bad tenant or region can't take down the rest. The bulkhead's lesson — and its warning — comes straight from the Titanic, whose compartments famously didn't reach high enough: water spilled over the tops from one to the next, and the "unsinkable" ship sank. Isolation only works if it's complete. A bulkhead with a hole in it is just a delay.

Timeouts, breakers, and bulkheads all contain a failure — but the request that hit the failed dependency still has to return something. The difference between a good system and a great one is what that something is. A great system degrades gracefully: it serves a smaller, working experience instead of an error page.

The move is to turn every hard dependency (its failure = your failure) into a soft one (its failure = a smaller experience). When a dependency is down or its breaker is open, don't throw an error — reach for a fallback:

• Serve a stale value from cache instead of the live one.
• Return a sensible default — popular items instead of personalized recommendations.
• Drop the non-essential — render the page without the reviews widget, but keep the buy button working.

When Netflix's personalization service is down, it doesn't show you a blank screen — it shows you popular titles and you barely notice. When the reviews service is down, Amazon still lets you check out. The core journey survives; only the garnish disappears. AWS makes this an explicit design principle — transform hard dependencies into soft dependencies through graceful degradation.

Its aggressive cousin is load shedding. When a system is genuinely overloaded — CPU pinned, queues deep — the worst thing it can do is accept every request and collapse serving none of them. Instead it deliberately rejects the excess (a fast 503, or dropping low-priority work) to protect the requests it can still serve. A bouncer turning people away at a full club is keeping the party alive inside. Refusing some work, on purpose, is often how you avoid failing at all of it.

Here's the uncomfortable truth about everything above: a fault-tolerance mechanism you've never actually triggered is just a hopeful comment in your code. Does your circuit breaker really trip at the right threshold? Does the fallback path actually work, or did it rot six months ago? Does killing this instance really reroute cleanly? You do not know until it happens — and 3 a.m. during a real outage is a terrible time to find out.

So the best teams take "failures are inputs" literally and cause failures on purpose, in controlled conditions. This is chaos engineering. Netflix pioneered it with Chaos Monkey, a tool that randomly kills production instances during business hours — forcing every service to be resilient to a lost node as a baseline condition of running at all. Teams run scheduled game days that inject latency, sever network links, and take dependencies offline, then watch whether the system degrades gracefully or falls over — and fix what falls over.

It sounds reckless; it's the opposite. Injecting a small, controlled failure on a Tuesday afternoon when everyone's watching is infinitely safer than discovering the same weakness by accident on Black Friday. Resilience isn't a property you design in once and trust forever — it's a property you verify, continuously, by breaking your own system before the world does it for you.

By now the toolkit might feel like a checklist to apply everywhere: timeout everything, wrap every call in a breaker, bulkhead every pool, retry it all. Resist that — because fault tolerance is not free, and every mechanism you add is also a new thing that can break.

The mechanism buys you…	…but it can bite back
retries survive transient blips	wrong backoff/cap → retry storms amplify the outage
circuit breakers stop cascades	bad thresholds → flapping, or masking a real problem
fallbacks keep the core alive	they can silently hide bugs (serving stale junk)
bulkheads contain failures	more pools to size, tune, and monitor

Every one of these adds complexity, and complexity is itself a leading cause of outages. A fallback that quietly serves six-month-old data can be worse than an honest error, because nobody notices the thing is broken. A circuit breaker with a careless threshold can trip on a healthy service and create the outage it was meant to prevent.

So fault tolerance is triage, not maximalism. Spend your resilience budget where the math from last lesson says it matters: on the critical path (the checkout, the login, the payment), against the likely failures (a dependency timing out, an instance dying), weighted by what an outage actually costs. Protect the things that must not fall; let the garnish degrade; and accept — explicitly — that you cannot tolerate everything. That residual risk is exactly the error budget you learned to price. The goal was never a system that never fails. It's a system that fails without falling.

"Reliability and availability are the same thing." Availability is uptime; reliability includes correctness — an up system serving wrong answers is unreliable. Fault tolerance is how you earn both under failure.

"Retries make a system more reliable." Naive retries make it worse — a retry storm amplifies the outage. Retries need backoff + jitter + a cap + idempotency, every time.

"A timeout is optional — I'll add it later." A missing timeout is the #1 cause of cascading failure. Every remote call gets a timeout, from day one.

"A slow dependency is better than a dead one." Usually the opposite — a dead one fails fast and frees resources; a slow one ties up workers and cascades. Design to fail fast.

"Fault tolerance means never failing." It means failing gracefully — contained, degraded, recovered. You will fail; the whole art is not falling over when you do.

"More resilience mechanisms are always better." Each one adds complexity and its own failure modes (storms, flapping, hidden bugs). Add them where likelihood × cost justifies it.

"We'll deal with failures when they happen." Failures are inputs, not surprises — design for them up front, and test them on purpose (chaos engineering).

"Redundancy alone makes me fault-tolerant." Redundancy handles a crash — not a slow dependency, a retry storm, or overload. Those need the rest of the toolkit.

Ten minutes turns this from patterns into instinct. Predict first: in an app you've built, pick one external call — a database, a payment API, an email service. If it started taking 30 seconds instead of 30 milliseconds right now, what would happen to the rest of the app?

1. Find the missing timeout. Go read the code for that call. Is there an explicit timeout on it? (Most default HTTP clients wait far longer than you'd ever want — sometimes forever.) If there isn't one, you've just found a cascade waiting to happen. Add it.
2. Trace the blast radius. Follow that dependency: if it hangs, which requests hold a worker waiting on it? Do those share a pool with your critical path (login, checkout)? If yes, one sick dependency can starve your most important flow — that's a bulkhead you're missing.
3. Design the fallback. For that dependency, ask: what's the degraded answer? A cached value? A default? Skipping the feature entirely? If your only options are "perfect answer" or "error page," you have a hard dependency that wants to become a soft one.

Do this for the three scariest calls in any system and you'll have found its real reliability weak points — the exact places one small failure is quietly wired to become a big one. That hunt, done before an incident instead of during one, is what "failures are inputs" means in practice.

How to fail without falling, in seven lines:

• Failures are inputs, not surprises. Everything fails; design for it — and know that a fault becomes an error becomes a user-facing failure only if nothing contains it.
• The nightmare is cascading failure: one slow dependency with no timeout eats a shared worker pool and takes down a whole healthy system.
• Timeouts are rule #1 — never wait forever; a slow dependency is worse than a dead one, so fail fast.
• Retries help only with backoff + jitter + a cap + idempotency — otherwise they become a retry storm that amplifies the outage.
• Circuit breakers stop hammering a dead dependency (closed → open → half-open); bulkheads isolate resources so one leak can't sink the ship.
• Graceful degradation turns hard dependencies into soft ones (serve stale/default/less); load shedding drops the non-essential to protect the core.
• Resilience is triage (protect the critical path, not everything) and it must be tested — cause failures on purpose (chaos engineering).

Every mechanism here was really one idea in different clothes: stop a single component's failure from becoming a shared, system-wide failure. And the very simplest, bluntest version of "a single component whose failure is fatal" has a name we've been circling since the first lesson — the box with no backup, the one whose death takes everything with it. Next we name it head-on and meet its equally blunt antidote: Single Points of Failure — and Redundancy, the Antidote.
