Anatomy of a Server: One Request, Start to Finish

Introduction

You type a URL, hit enter, and a moment later a page appears. Somewhere out there, "a server handled your request." But what is a server — and what actually happens in the sliver of time before your code even runs?

Most engineers carry a comfortable cartoon in their heads: request arrives → my code runs → response goes back. It's not wrong, exactly. It's just missing about 90% of the story — and the missing 90% is where nearly every performance mystery, every "why is it slow," every scaling wall you'll meet in this course actually lives.

So before we touch load balancers or databases, we're going to open the machine and follow one request all the way through it — wire to your code and back. Once you've seen this journey, a surprising amount of system design stops being memorization and starts being obvious.

In this lesson: what a server physically is · the real path a request takes through a machine · the user/kernel boundary · and why your code is the last, sometimes smallest, step.

Scope: we'll name the pieces (CPU, RAM, NIC, disk) and their speeds here; the memory hierarchy gets its own lesson next (The Memory Hierarchy), threads and processes come in Processes vs Threads, and "what happens with 10,000 requests at once" is The 10K Connections Problem. Today: one request, one machine.

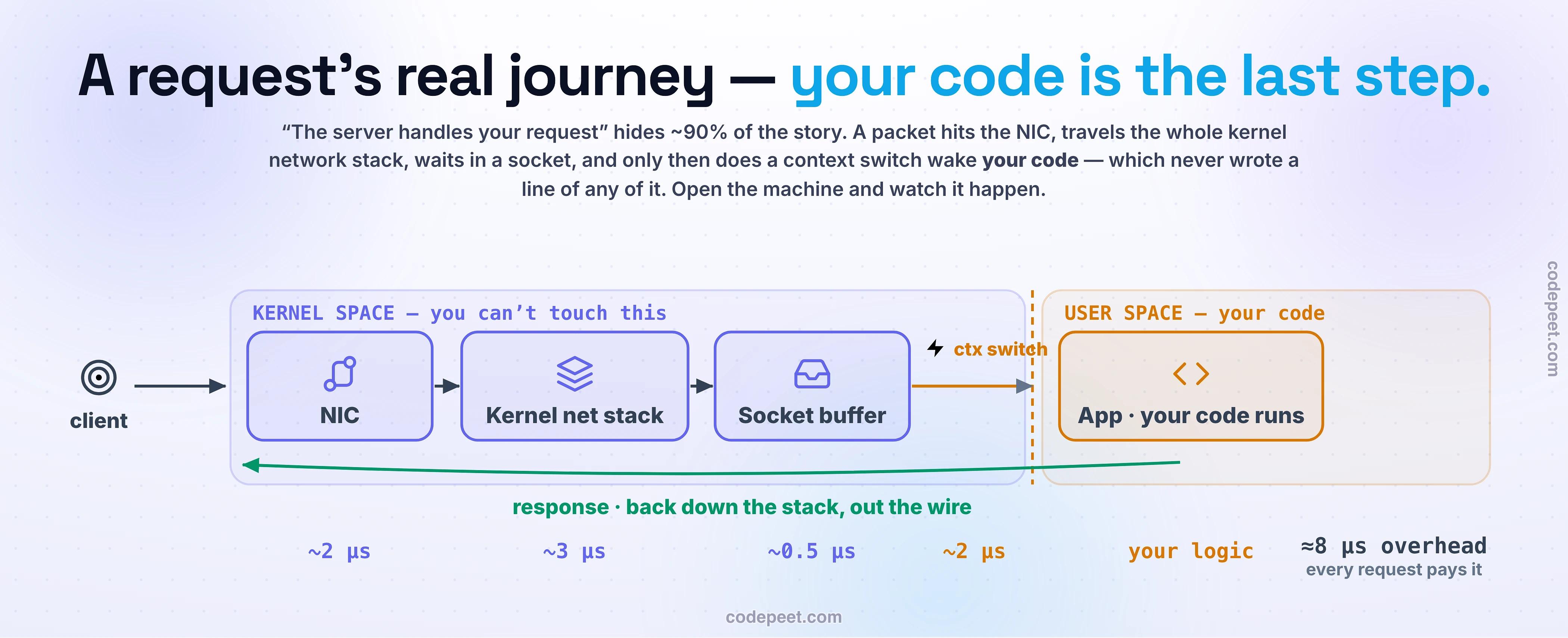

Hero infographic: the anatomy of a server and the journey of one request through it, drawn as a horizontal stack split into two bands. The kernel-space band (left, larger) holds three stations — the NIC (network card, which uses DMA to drop the packet into a RAM ring buffer and raises a hardware interrupt), the kernel network stack (a softirq drains the ring, then TCP/IP processes the packet), and the socket receive buffer (where the bytes wait). The user-space band (right) holds one station: the app process — your code — which the kernel wakes with a context switch across the user/kernel line and schedules onto a CPU core. A request packet enters from the client on the left, travels right through NIC, kernel stack, and socket, crosses the context-switch boundary into your code, then the response travels back down and out. Under each station sits its real latency: NIC and interrupt about 2 microseconds, kernel stack about 3, socket half a microsecond, context switch about 2 microseconds — roughly 8 microseconds of machine overhead that every request pays before and around your code. A focal note reads 'your code is the last step of a long kernel journey it never sees.' Below, a hardware strip shows what a server physically is — CPU cores, RAM, a NIC, and a disk — labeled 'a server is a normal computer running a server program, not magic.' Three cards carry the lesson: the latency ladder (L1 cache 0.5 nanoseconds, RAM 100 nanoseconds, a syscall about 300 nanoseconds, a context switch 1 to 5 microseconds, an SSD read 150 microseconds, a disk seek 10 milliseconds) that every later topic echoes; the user/kernel boundary as a restaurant service window, the only doorway between your code and the hardware; and the honest reframe that for a cheap request the OS journey IS the cost, so high system-CPU means the kernel is doing the work, not your code.

First: What Is a Server?

Let's kill the mystique immediately. A server is a normal computer running a program that waits for requests. That's it. The laptop you're reading this on could be a server this afternoon — the only difference is that a server program is listening on a port instead of a browser being open.

Physically, that computer has four parts that matter for everything ahead:

CPU (cores) — executes instructions. A modern cloud box has anywhere from 2 to thousands of virtual cores (AWS's largest rentable machine has 1,920). Each core runs one thing at a time.
RAM — the working memory. Fast (~100 nanoseconds to reach), volatile (gone on restart), and the home of your cache, your sessions, your in-flight data.
NIC (network card) — the door to the network. Packets arrive and leave here.
Disk (SSD) — durable storage. Survives restarts, but far slower than RAM.

"Renting a server" from AWS or GCP just means renting a slice of one of these machines (a virtual machine). No magic, no special hardware — a computer, a program, and a port. Hold that picture; now let's watch a request arrive at the NIC and travel inward.

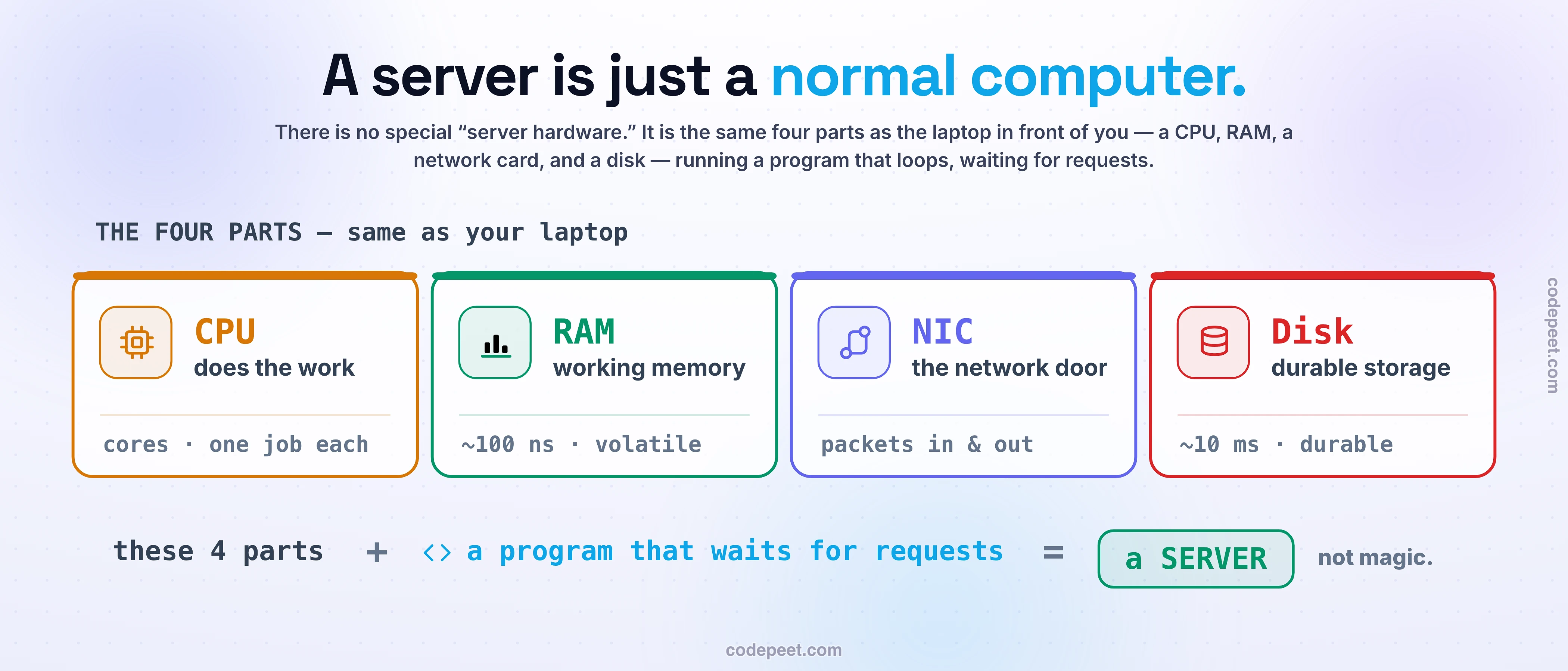

A server is a normal computer: four hardware parts — a CPU that does the work with cores that each run one job at a time, RAM as fast but volatile working memory at about 100 nanoseconds, a NIC as the door to the network for packets in and out, and a disk as durable storage that survives a reboot but is far slower at about 10 milliseconds — plus a program that loops waiting for requests. Those four parts plus that program equal a server; there is no special server hardware.

The Journey In: Wire to Your Code

Here's what actually happens when a request lands — the part the cartoon skips. Follow it hop by hop:

1. The NIC receives the packet. The network card copies the incoming bytes straight into a region of RAM (a ring buffer) using DMA — direct memory access, no CPU involved yet. Then it taps the CPU on the shoulder with a hardware interrupt: "something arrived."

2. The kernel processes it. The CPU doesn't do heavy work inside that interrupt (that would block everything). Instead it schedules a softirq — a deferred kernel routine — which drains the ring buffer and pushes the packet up through the network stack: IP, then TCP, reassembling your request from raw packets.

3. The bytes land in a socket buffer. TCP deposits the finished data into the receive buffer of a socket — the kernel's handle for your connection. The data is now sitting in kernel memory, ready. But your code still hasn't run.

4. The kernel wakes your process. Your app was asleep, blocked in a recv() or accept() call — waiting. The kernel marks it runnable, the scheduler picks it, and a context switch puts it onto a CPU core.

5. Finally — your code runs. It copies the bytes from kernel memory into its own (user) memory and executes your logic. Everything up to now, you never wrote a line of.

Then the whole thing runs in reverse: your response goes down the stack — write to the socket, TCP, IP, NIC, out to the wire. That round trip through the machine, before-and-around your code, is the request's real anatomy.

The Wall in the Middle: User Space vs Kernel Space

Notice that steps 1–4 all happened in a protected zone your code can't touch. That wall has a name, and it's one of the most important boundaries in all of computing: user space vs kernel space.

Your program runs in user space — sandboxed, unable to directly touch the NIC, the disk, or another process's memory. The kernel runs in the privileged zone that can touch hardware. The only way across is a system call (read, write, recv, accept, …) — a guarded doorway where the CPU flips into privileged mode, does the dangerous thing safely, and flips back.

The classic analogy is a restaurant service window. You (the app) can't walk into the kitchen (the kernel) — that would be chaos and a safety hazard. You place orders through the window (syscalls); the kitchen staff (the kernel) do the risky work — touching the hot stove (hardware) — and hand results back. The window exists precisely so one clumsy customer can't burn down the kitchen.

This isn't trivia. Crossing that boundary costs: a syscall is roughly 300 nanoseconds, and waking your process (a context switch) is 1 to 5 microseconds. Tiny — until you do it millions of times a second, at which point the crossing becomes your bottleneck, not your logic. (That's a thread we pull hard in The 10K Connections Problem.)

$ top
%Cpu(s): 34.2 us,  58.1 sy,  0.0 ni,  7.7 id
                   ^^^^^^^^
            'sy' = time the KERNEL spent working on your behalf
            (syscalls, context switches, network stack).
  High sy% often means: the machine is busy shuttling requests,
  not running your code. A faster CPU won't fix that.

The Latency Ladder (Memorize the Shape, Not the Digits)

Every step in that journey has a cost, and those costs span an enormous range. This is the single most useful table in system design — internalize the orders of magnitude, because every later topic (caching, databases, tail latency) is just a consequence of these gaps:

Operation	Time	In human terms (×2 billion)
L1 cache reference	~0.5 ns	1 second
Main memory (RAM)	~100 ns	~3.5 minutes
System call	~300 ns	~10 minutes
Context switch	~1–5 µs	~1–3 hours
SSD random read	~150 µs	~3.5 days
Disk (HDD) seek	~10 ms	~8 months

The right column scales everything up by two billion, so a nanosecond becomes a second. If reaching L1 cache takes 1 second, reaching RAM takes 3.5 minutes, and reading from a spinning disk takes eight months. That gulf — nanoseconds to milliseconds — is why caches exist, why RAM is precious, why touching disk is a decision, not a reflex. You'll feel this ladder under every lesson in this course. (Its own lesson, The Memory Hierarchy, is next.)

See It: Trace a Request Through the Machine

Time to watch the journey live. Pick what the request does — a trivial health check, a cached read, or a database query — then fire it and follow the packet through the NIC, the kernel stack, the socket, across the context-switch boundary, into your code, and back.

Try this first: run the health check, then the DB query, and watch the "your code" percentage swing wildly. That swing is the whole lesson — for a cheap request, the machine's kernel journey is the cost; for an expensive one, your code (and what it waits on) dominates.

Trace a request through the machine: pick what the request does (health check, cached read, or DB query), fire it, and watch the packet glide live through NIC → kernel stack → socket → your code and back — with a real latency breakdown that reveals how much of the trip was the machine versus your code.

The Trade-off

The user/kernel wall is itself a trade-off — the first of many where the "cost" is invisible until you look.

What it buys: safety and isolation. Because your code can't touch hardware directly, one buggy or malicious process can't corrupt the NIC, read another app's memory, or crash the machine. The kernel mediates everything, so a crash stays contained to one process. That isolation is the foundation multi-tenant cloud computing is built on.

What it bills: every interaction with the outside world — every network read, every disk access — pays the crossing cost (~300 ns per syscall, ~1–5 µs per context switch) and a memory copy from kernel space to user space. For most apps this is a rounding error. For a web server juggling hundreds of thousands of tiny requests, it becomes the cost — which is exactly why high-performance systems fight to cross the boundary less often (batching, epoll, and — at the extreme — kernel-bypass). You'll see that fight in earnest later; for now, just know the wall isn't free, and know why you'd ever pay to avoid it.

🧪 Try It Yourself

Do this on any machine you have (your laptop counts — it's a computer running programs, remember):

Open a terminal and run top (or htop). Find the CPU line showing us (user) and sy (system) percentages.
Now run something I/O-heavy — e.g. find / -type f > /dev/null 2>&1 (searches the whole disk). Watch sy% climb.
Ask yourself: why is a file search making the kernel busy, not my user code?

Check: find constantly asks the kernel to read directory entries — millions of tiny syscalls crossing the user/kernel boundary. The work isn't in find's logic (low us); it's in the crossings (high sy). You just watched the wall from this lesson show up on a real dashboard. That instinct — "high sy% means kernel/syscall work, not slow code" — is a genuine debugging superpower.

Mental-Model Corrections

"A server is special hardware." → It's a normal computer running a server program. The magic is in the software listening on a port, not the metal.
"The request arrives at my code." → It arrives at the NIC, travels the whole kernel network stack, and lands in a socket buffer. Your code gets woken up to receive it — it's the last step, not the first.
"System calls and context switches are basically instant." → ~300 ns and ~1–5 µs. Invisible once, ruinous a million times a second. The crossing is a real cost with a real name.
"Slow server? Get a faster CPU." → Often the CPU is idle, waiting on disk or network, or drowning in context switches (high sy%, not us%). The bottleneck is usually I/O or the kernel journey, not raw compute. (Full treatment: The Four Bottlenecks.)
"RAM and disk are both just 'storage'." → RAM is ~100 ns; a disk seek is ~10 ms — a hundred-thousand-fold gap. Treating them as interchangeable is behind a huge share of slow systems. (Next lesson: The Memory Hierarchy.)

Key Takeaways

A server is a normal computer (CPU cores · RAM · NIC · disk) running a program that waits for requests. No magic.
A request's real journey is NIC → kernel network stack → socket buffer → (context switch) → your code → back down and out. Your code is the last step of a long journey it never sees.
The user/kernel boundary (crossed only via system calls — the service window) buys safety and isolation, and bills ~300 ns per syscall / ~1–5 µs per context switch.
The latency ladder — L1 0.5 ns → RAM 100 ns → syscall 300 ns → context switch µs → SSD 150 µs → disk seek 10 ms — is the spine of everything ahead. Learn the orders of magnitude.
Diagnostic instinct: high sy% = the kernel is busy (syscalls, context switches, network) — a faster CPU won't help.
Next — The Memory Hierarchy: Disk, RAM, CPU Cache: we zoom into that latency ladder and make "why is a cache fast?" permanently obvious.
