Wide-Column Databases

Discord's engineers have a storage problem most companies never earn: trillions of messages, arriving in a relentless firehose, every one of them a write. And when someone opens a channel, the app asks one question, shaped exactly the same way every time: "give me the latest 50 messages in THIS channel."

Run that through the families you know. Relational? The correctness machinery is dead weight here — nobody joins messages, and a single box won't hold a trillion rows anyway. Document? A channel isn't an aggregate you read whole — it's millions of messages you read fifty at a time, forever growing (you know exactly what unbounded growth does to a document). Key-value? Tantalizingly close — hash the channel, route to a node — but a KV store hands back the one thing this workload can't live without: order. "Latest 50" is meaningless in a bag of unsorted values.

What this workload wants is a hybrid nobody's sold us yet: key-value placement with sorted order inside. That exact hybrid is the wide-column family — and it's been quietly running the biggest write-heavy systems on Earth since Google published its blueprint in 2006.

In this lesson: the two-level key that defines the family (placement vs order — the whole model in two words), why "sparse" and "sorted" each earn their place in the founding definition, the design doctrine that inverts everything you learned about tables, where it breaks (partitions that melt, partitions that never stop growing, deletes that make reads slower), and why this family's famously narrow niche is the point, not the flaw.

Scope: the append-path storage engine that makes writes cheap is LSM Trees & SSTables (§2); Cassandra's leaderless replication — the other reason people choose it — is Replication & Consistency (§3); shard-key dynamics and hot-shard surgery live in Choosing a Shard Key and Resharding & Hot Shards; interview-grade Cassandra internals in Cassandra (Interview Mastery).

Everything in this family hangs off one idea, so let's put it in front of you as code. Here is Discord's actual messages table, in Cassandra's CQL:

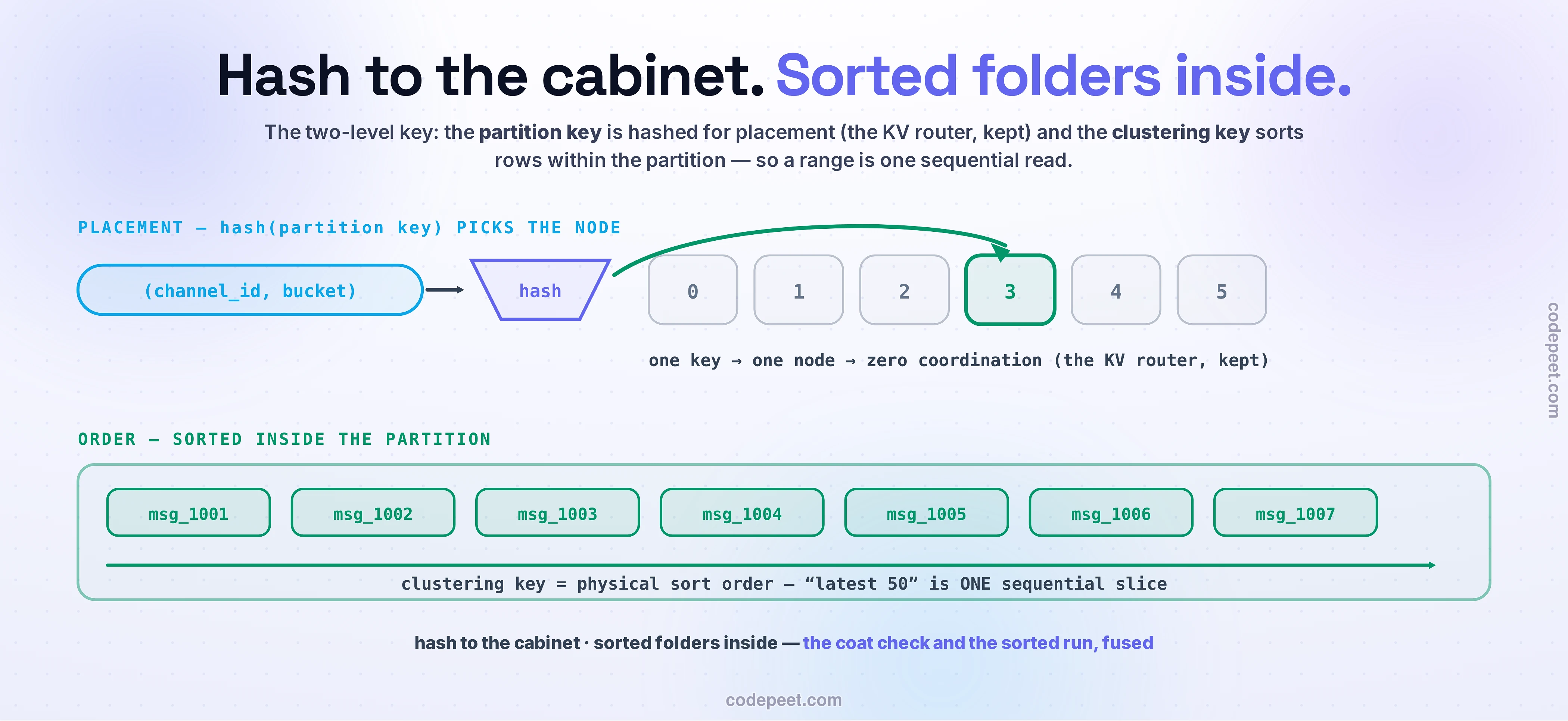

That primary key has two levels, and they do completely different jobs:

The partition key — (channel_id, bucket) — decides PLACEMENT. It gets hashed, and the hash picks the node. This is literally the key-value router from Key-Value Stores — same hash, same "one key, one home" logic, same zero-coordination scale-out. All rows sharing a partition key live together, on one node, as one unit called a partition.

The clustering key — message_id — decides ORDER. Within the partition, rows are stored physically sorted by it. Not indexed-then-looked-up: stored in order on disk. So "latest 50 messages" isn't a search — it's reading fifty consecutive entries off the end of a sorted run. You know from Sequential vs Random Access: Why Order Matters why that's the cheapest read a disk can offer. Placement gets you to the right node in one hop; order makes the read sequential once you're there.

Hold both in your head as one motto — hash to the cabinet, sorted folders inside — and you can derive the rest of this lesson yourself. Including the restriction that shocks people coming from SQL: if your query doesn't start with the partition key, the engine has no idea which node to visit. It either fans out to every node or refuses outright (Cassandra makes you type ALLOW FILTERING — a confession, not a feature).

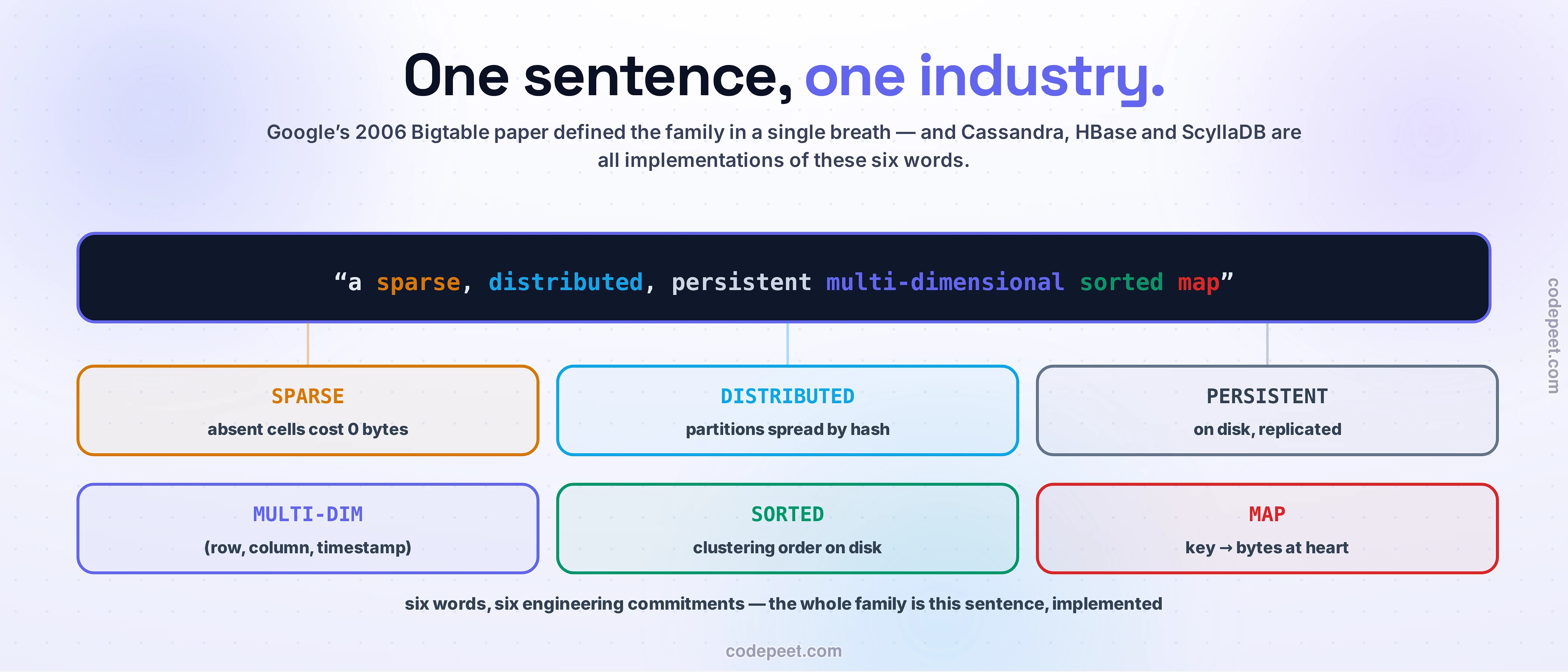

The family has a birth certificate: Google's Bigtable paper (2006), which defines the whole model in one sentence — "a sparse, distributed, persistent multi-dimensional sorted map." Six words doing six jobs; three of them deserve a closer look, because each one is a design decision you now recognize.

Sparse. A wide-column table can declare thousands of columns, and each row stores only the cells it actually has. No NULL graveyard — an absent cell costs zero bytes. That's what "wide" really means: the table's width is potential, not stored. A row with 6 fields and a row with 60 coexist without waste (and no, that doesn't make it schemaless — CQL made you write CREATE TABLE).

Sorted. Rows within a partition sit in clustering-key order — the property the previous section built everything on, and the single biggest difference from a plain KV store.

Map. At the bottom it's still key → bytes — the key-value lesson's DNA. In fact the 2024 Stonebraker–Pavlo retrospective classifies column-family stores bluntly: "a reduction of the document data model" — a map from keys to semi-structured records. Your mental picture of this section's three families should now be one lineage: key-value (sealed values) → document (unsealed, nested values) → wide-column (unsealed, flattened and sorted values). Same river, three bends.

Bigtable's blueprint escaped Google's walls fast: Facebook built Cassandra on it (mixing in Dynamo's clustering — both 2007 papers in one system), the Hadoop world built HBase, and ScyllaDB later rebuilt Cassandra in C++ (that's the engine Discord jumped to — 177 nodes down to 72, p99 reads from 40–125 ms to 15 ms). One more lineage note for your map: the engine's write path is an append-optimized structure called an LSM tree — that's why relentless writes are this family's comfort zone, and it gets its own lesson in Database Internals.

Now the part that genuinely rewires SQL-trained brains — not a limitation to memorize, but a design philosophy to adopt.

In the relational world you model the entities — orders, customers, dishes — and any question can arrive later; the planner will figure it out. In wide-column world that contract is gone. There is no planner improvising access paths, no joins, no ad-hoc WHERE on arbitrary columns. A table answers the queries whose shape starts with its partition key, in the order of its clustering key — and nothing else.

So you design backwards. Cassandra's own documentation is explicit about this: start from the queries, then build one table per query shape. "Latest messages per channel" → the table you saw. "All messages by a user, across channels"? That's not an index away — that's a second table, partitioned by user_id, holding a second copy of every message, written at write time. Duplication across query-shaped tables isn't a smell here; it's the entire method. You're doing the join at write time because reads refuse to.

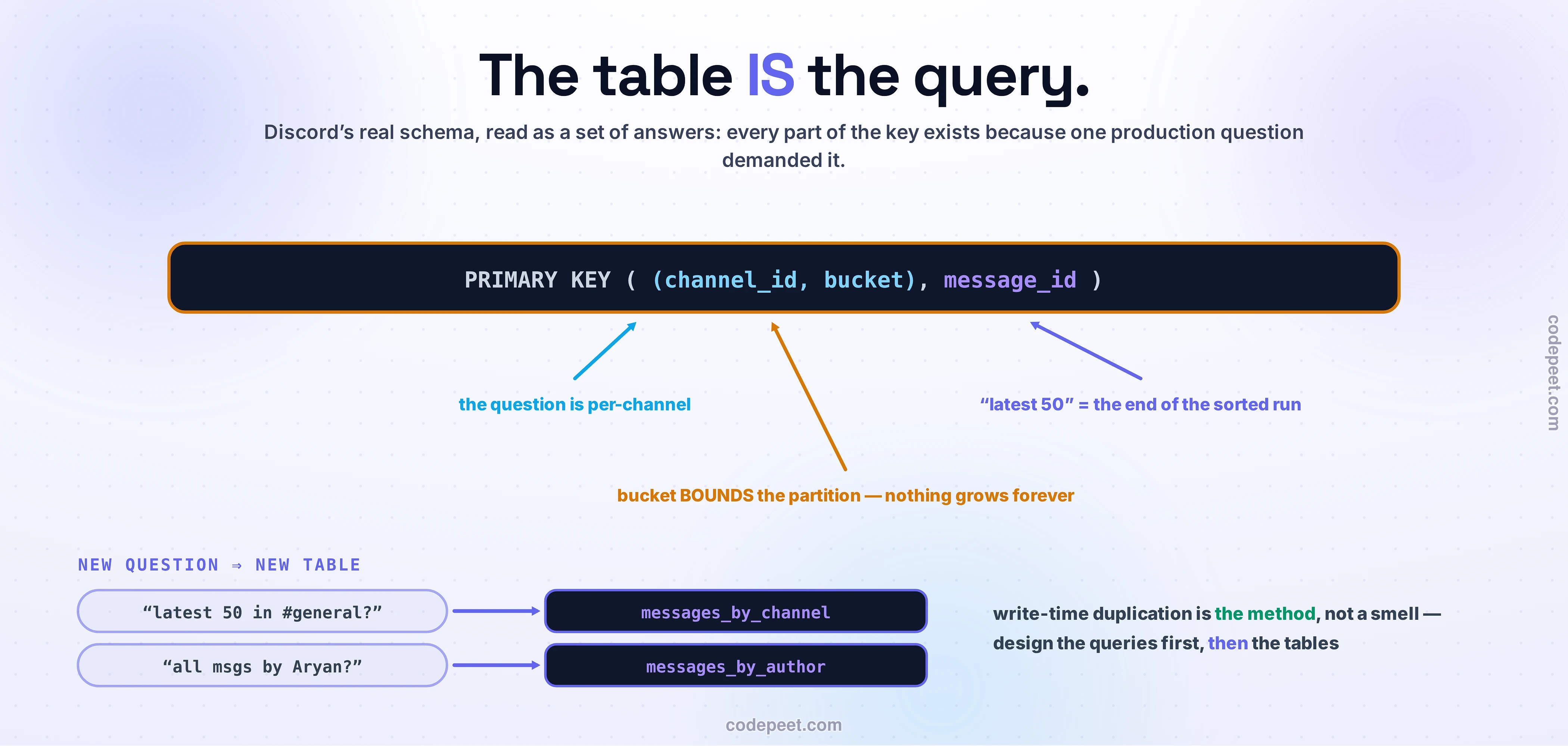

Look at Discord's key one more time, because every part is a query decision: channel_id because the question is per-channel; message_id clustering because the question says latest; and bucket — the piece newcomers always ask about — because without it, a busy channel's partition would grow forever. You've seen that disease before: it's Document Databases' unbounded array, reborn one level up. Same wound, new organ, same cure: bound the growing thing by design.

(If this write-time-duplication instinct feels familiar, it should — it's the document lesson's "pre-combine at write" bet, industrialized. The full method, including single-table patterns, is NoSQL Modeling: Denormalization & Single-Table Design.)

Time to earn the doctrine. Below, Discord's storage problem is yours: assemble the primary key — placement, then order — and fire real questions at your design. The hash routing is live (same real FNV-1a as the KV lesson), so partitions land where they land.

A path worth following: start with (channel_id) and no clustering key, ask for the latest 50, and watch the right node hand you a jumbled pile your app must sort. Add message_id and ask again — one node, one sorted slice, the family's home turf. Then ask for user 8412's messages and watch six nodes shrug (that question wants a second table, not an index). Then let six months pass — twice — on a bucketless key, and watch the partition width march into the red. There's exactly one key in the widget that survives every timeline: it's the one Discord shipped.

Three failure modes define this family's operational folklore. You've now driven two of them; here are all three with their real-world receipts.

Wide partitions. The unbounded partition isn't a beginner's mistake — it's so endemic that in 2026, Netflix (a trillion Cassandra requests a day) published a dynamic partition-splitting system because oversized time-series partitions were dragging reads from milliseconds to seconds. Automatic surgery, built because even experts misjudge growth. Your first line of defense is free: put a time window in the partition key, like Discord's bucket. Bound every partition by design, not by hope.

Hot partitions. One viral channel = one partition = one node taking the entire burst while its neighbors idle. You met this exact geometry in Key-Value Stores ("hashing spreads keys, not traffic") — a partition just makes the unit bigger. The mitigations (salting, splitting, write-sharding) have their own lesson: Resharding & Hot Shards.

Tombstones — the haunting. Here's the one that surprises everyone: in this family, a delete is a write. The engine can't erase a row scattered across immutable on-disk files, so it writes a tombstone — a marker saying "this is dead" — which must linger (default ~10 days) so every replica hears about the death. Until compaction sweeps them, reads must step over the corpses. Delete heavily — say, using a message table as a work queue: insert, process, delete, repeat — and reads slow, then time out. "Cassandra as a queue" is the canonical anti-pattern; queues want a log, and that family arrives in Queue Models: Broker (RabbitMQ) vs Log (Kafka).

Notice what all three have in common: none are bugs. They're the model's core bets — placement by hash, order on disk, append-only writes — casting shadows. Choose the bets, inherit the shadows.

The 2024 Stonebraker–Pavlo retrospective delivers this family's verdict with a shrug: "a niche market. Without Google, this paper would not be talking about this category." Harsh — and worth taking seriously, because it's true. Then look at who lives in the niche: Apple, with 160,000+ Cassandra instances holding over 100 PB; Netflix, 10,000+ instances serving a trillion requests a day; Discord's trillions of messages at 15 ms p99. Some niche.

Both facts are the same fact. The band is narrow: relentless write volume + access that always starts with a key + a need for order within it. Messages, feeds, activity timelines, telemetry, event history — write-heavy, key-shaped, time-ordered. Inside that band, nothing else comes close, which is why the biggest write-heavy systems on Earth all converged here. Outside it, every restriction you've met — no joins, no ad-hoc queries, table-per-query duplication, tombstone haunting — is pure tax with no rebate.

So the review-room framing: reach for wide-column when you can write the partition key of your top three queries on a whiteboard before choosing the database — that's the tell that your access is genuinely key-shaped. If your queries are exploratory, relational-with-sharding or a search engine will hurt less. And if what's really pulling you is "Cassandra stays up when nodes die" — that's the other half of its fame, leaderless replication with tunable consistency, and it's the star of Replication & Consistency, one section ahead.

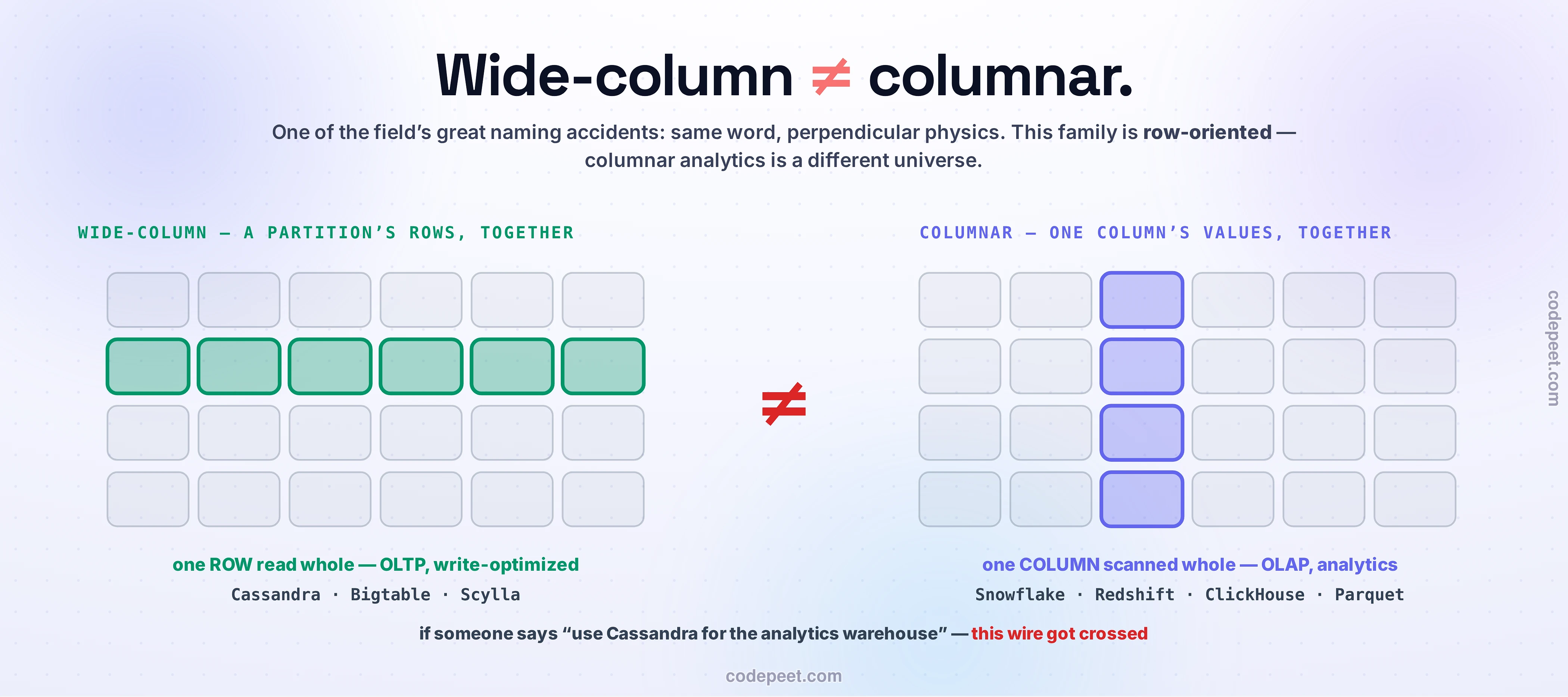

One naming landmine before you leave, because interviews adore it: wide-column is not columnar. Despite the name, this is a row-oriented, write-optimized transactional family. "Columnar" — storing each column contiguously to scan billions of values for analytics — is a different idea from a different universe, and it revolutionized a different market. The full disambiguation is exactly where it belongs: OLTP vs OLAP, five lessons ahead.

You're designing tables for the marketplace's new courier-tracking service on a wide-column store. For each workload: write the PRIMARY KEY — ((partition key), clustering key) — or say wrong family. Commit before scrolling.

1. "Latest 20 status events for order 501" — orders emit ~50 events over an hour; queried constantly while active.
2. "All GPS pings for courier 77 today, in order" — 5 pings/second, per courier, all day (you predicted this family two lessons ago).
3. "Which couriers are within 2 km of this restaurant right now?"
4. "Every order courier 77 delivered, newest first" — AND "every courier who touched order 501" — both needed.

Answers. (1) ((order_id), event_time) — bounded partition (orders finish, ~50 events), clustering gives newest-first for free. No bucket needed: the entity itself is bounded. (2) ((courier_id, day), ping_time) — the day bucket is mandatory: 5/sec forever is the definition of unbounded; this is Discord's schema with couriers wearing the channel costume. (3) Wrong family — "within 2 km" is a geospatial question; no partition key contains it. That shape gets its own machinery in Geospatial Search: The Problem (§8). (4) Two tables — ((courier_id), delivered_at) and ((order_id), assigned_at) — the same facts written twice, once per question. If writing data twice still feels like a bug rather than the design, re-fire the widget's user-8412 query; the doctrine usually lands the second time.

• "Wide-column = columnar." The naming trap of the entire database landscape. This family stores rows, write-optimized, for transactions — the 2024 retrospective calls it "a reduction of the document data model." Columnar storage (each column contiguous, built for analytics scans) is a different idea — see OLTP vs OLAP. Say "column-family" in interviews and nobody can mishear you.
• "CQL is SQL." It's SQL-shaped. No joins, no ad-hoc WHERE, no cross-partition aggregation — the familiar syntax is ergonomics wrapped around a hash-and-sorted-run engine. The moment you type ALLOW FILTERING, the engine is telling you your table doesn't match your question.
• "Cassandra is schemaless." You wrote CREATE TABLE with typed columns. Sparse means absent cells cost nothing — not that structure is optional. (Fifth family, same schema truth, new costume.)
• "Use it whenever you need scale." Only when access is key-shaped and write-heavy. The whiteboard test: if you can't write your top queries' partition keys before choosing the database, this family will fight you daily.
• "Deletes free up space and speed things up." Deletes are writes here — tombstones that haunt reads until compaction. Heavy delete patterns (especially queues) are the canonical self-inflicted wound.
• "One table per entity." Inverted: one table per query. Duplication across query-shaped tables is the method — a join performed at write time, because read time refuses.

• The whole model is a two-level key: the partition key is hashed for placement (the KV router, kept) and the clustering key gives order within the partition (sorted on disk — ranges are sequential reads). Hash to the cabinet, sorted folders inside.
• The founding sentence (Bigtable, 2006): a sparse, distributed, persistent, multi-dimensional sorted map — sparse means absent cells cost nothing; lineage: Cassandra, HBase, ScyllaDB. In the section's river: KV (sealed values) → document (unsealed) → wide-column (unsealed, flattened, sorted).
• The table IS the query: queries must start with the partition key; new question ⇒ new table with duplicated data (a write-time join). Discord's ((channel_id, bucket), message_id) encodes three query decisions — including bucket, which bounds partition width by design.
• The three shadows: wide partitions (Netflix automated the surgery in 2026 — bound growth with time windows), hot partitions (one viral key = one node, ⟶ Resharding & Hot Shards), and tombstones (deletes are writes that haunt reads — never build a queue here).
• The 2024 verdict — "a niche market" — is a compliment misread: the band (relentless writes + key-shaped, ordered access) is narrow and owned outright: Apple's 160K+ nodes, Netflix's trillion requests/day, Discord's trillions of messages.
• Wide-column ≠ columnar — the landscape's best-named trap; the columnar story lives in OLTP vs OLAP.
• Next: every family so far treats relationships as something to embed, reference, or duplicate. What if the relationships ARE the data — and your query is "hop them, five levels deep"? That's Graph Databases.
