RAG Design Decision Guide

Introduction

This is the finale of the RAG container. Over the last 38 lessons you've built an enormous toolbox — chunking strategies, embeddings, vector databases, hybrid search, fusion, reranking, query transformation, routing, knowledge graphs, GraphRAG, multimodal retrieval, agentic RAG, and evaluation. The danger of a big toolbox is using all of it on every problem. This lesson is the meta-skill: how to choose.

Here's the truth that ties everything together, and it's the same shape as "there's no best vector DB" and "there's no best chunk size": there is no "best RAG." There's only the right stack for your queries, your data, and your stakes. A 200-question FAQ bot and a multi-hop legal-research assistant are both RAG — and they should share almost no architecture.

In this finale you'll learn:

Step 0: whether you even need RAG (sometimes you don't)
The maturity ladder — start simple, climb only when your eval demands it
The trigger map — match each technique to the one failure it fixes
The anti-patterns that sink most projects — and the meta-principles that won't

Step 0: Do You Even Need RAG?

Before you build any of it, ask the question most tutorials skip: does this problem even need retrieval? Reaching for RAG by reflex is the first over-engineering trap.

Tiny corpus? Skip RAG. If your entire knowledge base is under ~200k tokens (≈500 pages), just put it all in the prompt with long-context + prompt caching (L94). No chunking, no embeddings, no vector DB — it's simpler, faster to ship, and easier to debug. Always benchmark this baseline first.
Long-context vs RAG at scale. Long context didn't kill RAG — but it's roughly 20–24× more expensive than RAG at production volume. Great for prototyping and small corpora; a money-fire for a large, high-traffic system. RAG wins on scale.
RAG vs fine-tuning — not an either/or. The clean 2026 split: RAG for volatile facts/knowledge; fine-tuning for stable style, policy, and behaviour. Don't force one tool to do both jobs. And start even simpler: prompting + evals, then add RAG before fine-tuning for knowledge-heavy tasks.

The meta-rule for the whole lesson, stated once: start with the simplest approach that meets your requirements, then add complexity only when a measurement tells you to. If you remember nothing else, remember that.

The Maturity Ladder

If you do need RAG, don't build the cathedral on day one. Climb a ladder, and stop as soon as your eval says you're good enough. Each rung is something you've now mastered:

1️⃣ Baseline. Recursive chunking + a strong embedding model + top-k retrieval. Ship it, point your RAGAS eval (L107) at it, and get a number. This answers a surprising fraction of queries — and you can't know what to fix until you've measured this.

2️⃣ The strong default. Add hybrid search (dense + BM25) + RRF + a reranker + metadata filtering. This is the near-SOTA 2026 stack, and it's the most important rung — because the biggest, cheapest wins are in the middle of the ladder. Hybrid + reranking fixes the majority of retrieval failures (recall and precision). If your retrieval is missing exact-term matches, you need this, not an agent.

3️⃣ Escalate — only on a named failure. Now, and only now, reach for the exotic: query transforms, knowledge graphs, GraphRAG, multimodal, agentic RAG — each routed so it runs only where it earns its cost.

✓ Always. RAGAS eval (recall first), caching, and observability wrap every rung. And re-index periodically — a RAG system goes stale in under six months; it is far from set-and-forget.

The whole decision, as code — notice how it starts minimal and only grows on a trigger:

def design_rag(use_case):
    # 0) Do you even need RAG? A small corpus just goes in the prompt.
    if corpus_tokens(use_case) < 200_000:
        return ["long-context + prompt caching"]          # simplest; revisit if it grows

    stack = ["recursive chunking", "strong embeddings", "top-k"]        # 1) BASELINE — ship & measure
    stack += ["hybrid (BM25 + dense)", "RRF", "reranker", "metadata"]   # 2) STRONG DEFAULT — fixes MOST failures

    # 3) ESCALATE — add a technique ONLY when a measured failure triggers it:
    if data_has_visuals(use_case):              stack += ["multimodal (ColPali / vision LLM)"]
    if needs_global_themes(use_case):           stack += ["GraphRAG (communities + global search)"]
    elif relational_or_multihop(use_case):      stack += ["knowledge graph"]
    if vague_or_compound(use_case):             stack += ["query rewriting / HyDE / decomposition"]
    if high_stakes(use_case) or multi_hop(use_case): stack += ["agentic RAG (CRAG / Self-RAG)"]
    if len(stack) > 7:                          stack += ["adaptive routing"]   # spend cost only where needed

    stack += ["RAGAS eval", "caching", "observability"]                # ALWAYS
    return stack
# The shape is the lesson: it STARTS minimal and only GROWS on a trigger.
# Most real use cases stop right after the strong default.

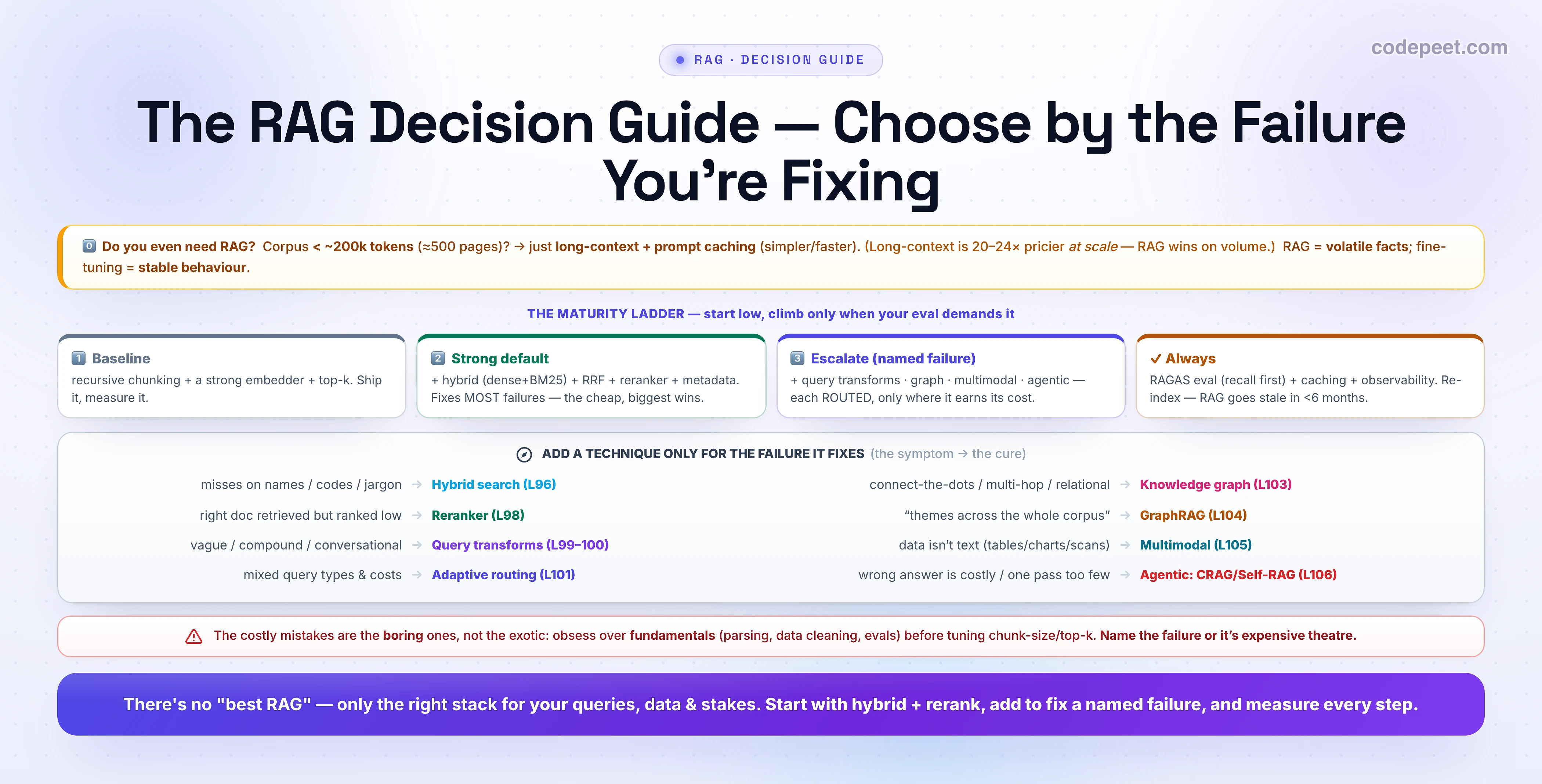

Choose by the Failure You're Fixing

Rung 3 is where judgment matters most, and the discipline is the throughline of this entire container, stated as one rule: add a technique only when you can name the specific failure it fixes. Here is the complete trigger map — symptom → cure:

The failure you measure	The cure
Misses on names / codes / jargon (recall)	Hybrid search (L96)
Right doc retrieved but ranked low (precision)	Reranker (L98)
Vague / compound / conversational queries	Query transforms — rewrite / HyDE / multi-query / decompose (L99–100)
Mixed query types & costs	Adaptive routing (L101)
Connect-the-dots / multi-hop / relational	Knowledge graph (L103)
"Themes across the whole corpus"	GraphRAG — communities + global search (L104)
Data isn't text (tables, charts, scans)	Multimodal (L105)
Wrong answer is costly, or one pass can't gather enough	Agentic RAG — CRAG / Self-RAG (L106)
Knowing whether any of it helped	RAGAS eval (L107)

Run it in order of cost: exhaust the cheap, high-impact rungs (hybrid, rerank) before the expensive, niche ones (GraphRAG, agentic). The exotic techniques dominate the discourse, but for most systems the cheap middle of the ladder is where the wins live.

See It: The RAG Architecture Recommender

Let's make the whole decision concrete. Answer four questions about your use case below — query type, data, corpus size, stakes — and watch a recommended stack assemble itself: what to include (and why), and what to skip as overkill. Try flipping the answers and see how little (or how much) you actually need:

Answer four questions about your use case — query type, data, corpus size, stakes — and get a recommended stack: what to include (and why), and what to SKIP as overkill. Watch it grow only when a real trigger fires.

Notice the behavior that is the lesson: the stack starts small and only grows when a trigger fires. A simple, low-stakes, text-only lookup bot stops at the strong default — hybrid + rerank + eval — and skips graphs, multimodal, and agents entirely. A high-stakes, multi-hop, mixed-data assistant earns the whole ladder. Same toolbox, very different builds — driven by the problem, not by the hype.

The Anti-Patterns (How RAG Projects Actually Fail)

Most failed RAG projects don't fail because they picked the wrong exotic technique. They fail on the boring things — "the most expensive mistakes show up in three of four audits." Avoid these and you're ahead of most teams:

Skipping the fundamentals. Teams spend weeks tuning chunk size, reranker thresholds, and top-k — while broken PDF parsing silently corrupts the data underneath (L86). Parsing, data cleaning, and evals beat exotic tuning every time. Fix the foundation first.
Expensive theatre. Adding GraphRAG, agents, or HyDE "because the architecture diagram looked lonely." If you can't name the failure a stage fixes, it's pure cost, latency, and new failure modes for no benefit.
Over-engineering the easy case. Agentic RAG on a 200-question FAQ (8× cost, 3s latency, +2% accuracy). GraphRAG for simple lookups. Multimodal for pure text. Match the tool to the problem.
Not measuring. Tuning by vibes instead of an eval set. You can't improve — or even know if you regressed — without RAGAS in CI (L102, L107).
One-size-fits-all. Running the full pipeline on every query instead of routing (L101) — paying max latency/cost for trivial questions.
"Set and forget." A RAG system decays in under six months as documents change and the world moves on. Plan for re-indexing, monitoring, and maintenance from day one.

The Whole Container in One Mental Map

Step back and see what you've actually built. Every technique in this container exists to fix one specific failure — here's the entire toolkit as a single mental index:

Foundations (what & where to store):

Embeddings → match by meaning. Vector DBs / ANN → search millions fast. Metadata → filter.

Indexing (how to prepare knowledge):

Chunking → one idea per chunk (the biggest lever). Contextual retrieval / late chunking → give each chunk its context back. Small-to-big / multi-vector → match small, return big.

Retrieval (how to search well):

Hybrid + RRF → semantics + exact terms. Reranking → precision on the top-k. Query transforms → fix the query. Routing → spend proportional to difficulty.

Advanced reasoning (when retrieval isn't enough):

Knowledge graphs / GraphRAG → relationships & global themes. Multimodal → non-text answers. Agentic (CRAG/Self-RAG) → self-correct in a loop.

The backbone:

RAGAS eval → measure both halves and diagnose which to fix.

That's the whole field, organized not by buzzword but by the problem each piece solves. Internalize that map and you can architect a RAG system for almost any use case — by reasoning from the failure, not the fashion.

🧪 Try It Yourself

Use the recommender, then architect from scratch:

In the widget, set Tiny corpus. What does it recommend, and why is reaching for the full RAG stack the wrong first move here?
Set Simple lookups + Mostly text + Normal + Low stakes. Where does the ladder stop — and what does it tell you about how most apps should be built?
Set Global "themes" + Rich relationships + Huge + High stakes. Which advanced techniques light up, and why does routing appear?
A teammate proposes GraphRAG + agentic RAG for an internal FAQ bot over 300 clean text articles. Using the trigger map, what's your one-sentence pushback?
Your RAG bot is missing answers about specific error codes (e.g. E-4012). What's the cheapest fix, and what would be over-engineering it?

→ (1) It recommends long-context + prompt caching and skips RAG — below ~200k tokens, retrieval is overhead that's slower to ship and harder to debug than just loading the corpus. (2) It stops at the strong default (baseline + hybrid + RRF + rerank + eval) — exactly where most production apps should land; graphs/agents/multimodal are skipped as overkill. (3) GraphRAG (global themes) + knowledge graph (relational) + agentic (high stakes) + routing — routing appears because once you've added several expensive techniques, you must apply them only to the queries that need them. (4) "Name the failure first — for clean-text FAQ lookups, hybrid + rerank fixes it; GraphRAG and agents are expensive theatre here." (5) Cheapest: hybrid search (BM25 catches the exact code that embeddings blur). Over-engineering: bolting on GraphRAG or an agent for what is a plain recall/exact-match problem.

The Meta-Principles (Mental-Model Corrections)

The wisdom of this whole container, distilled — the corrections that outlast any specific technique:

"There's a best RAG architecture." No — only the best for your queries, data, and stakes. Architecture is a fit decision.
"More techniques = better." More techniques = more cost, latency, and failure modes. The best stack is often small (hybrid + rerank + eval).
"Start with the advanced stuff." Start with the baseline + strong default; the cheapest, biggest wins are mid-ladder. Escalate only on a named, measured failure.
"RAG is always the answer." Sometimes it's long-context (small corpus) or fine-tuning (behaviour). Ask Step 0 first.
"Tune the exotic knobs." Fundamentals first — parsing, data cleaning, evals beat chunk-size tuning. The boring mistakes are the costly ones.
"Ship it and you're done." RAG goes stale in <6 months. Build for eval, monitoring, re-indexing, and routing from day one.
"Pick by the hype." Pick by the failure you're fixing. Reason from the problem, not the fashion.

Key Takeaways

There is no "best RAG" — only the right stack for your queries, data, and stakes. Architecture is a fit decision, and the same toolbox builds very different systems.
Step 0: do you even need RAG? Under ~200k tokens → long-context + caching; RAG = facts, fine-tuning = behaviour, prompting + evals first.
Climb the maturity ladder: baseline → strong default (hybrid + RRF + rerank — the cheap, biggest wins) → escalate only on a named failure → always eval + cache + observe + re-index.
Choose by the trigger: names/codes→hybrid · ranked-low→rerank · vague→transforms · multi-hop/relational→graph · global→GraphRAG · non-text→multimodal · high-stakes→agentic · everything→eval — routed by query type.
Avoid the boring failures: fundamentals over exotic tuning, name the failure or it's theatre, don't over-engineer the easy case, measure in CI, and maintain (RAG decays fast).
🎓 That completes the RAG container. You can now design, build, evaluate, and choose a retrieval system for almost any problem — from a weekend FAQ bot to a self-correcting, multimodal, graph-powered research assistant. Next, we leave retrieval behind and enter the world of agents — where the LLM doesn't just retrieve, but acts.
