Parent-Child / Small-to-Big Retrieval

Introduction

Two lessons ago we hit a wall: the Goldilocks tradeoff (L90). Small chunks give a sharp, precise vector but starve the LLM of context; big chunks give context but dilute the vector so retrieval gets worse. Then, at the end of the last lesson, sentence-window retrieval hinted at an escape: what if the chunk you match doesn't have to be the chunk you return?

This lesson makes that the main event. Small-to-big retrieval (a.k.a. parent-child) is one of the highest-leverage, lowest-risk upgrades you can make to a flat RAG pipeline — and it's beautifully simple:

Embed and match on small children (precision). Return the big parent to the LLM (context).

You stop forcing one chunk size to do two incompatible jobs. In this lesson:

The core idea and why it beats one-size chunking
Parent-child (2-level) with LangChain's ParentDocumentRetriever
Auto-merging (multi-level hierarchy) with LlamaIndex
The pitfalls (context cost, dedup, oversized parents) and the honest state of the evidence

The Core Idea: Decouple Matching from Returning

Flat RAG uses the same chunk for two jobs that want opposite things:

Matching wants a chunk small and focused — one idea, so its embedding is a sharp point in vector space (recall L90's dilution: a multi-topic chunk's vector is a muddy average).
Answering wants a chunk large and complete — enough surrounding context for the LLM to actually respond.

Small-to-big simply stops compromising: it uses a small unit for the first job and a big unit for the second. The mechanism is a two-store setup:

A vectorstore holds the embedded child chunks — this is what you search.
A docstore holds the parent chunks (or whole documents), looked up by id — these are never embedded.

At query time: embed the query → find the most similar child → follow the child → parent link → hand the LLM the parent. The crucial subtlety: you never embed the big parent — if you did, its vector would be diluted by all its other content and retrieval would degrade. The parent exists only to be returned, not matched. That's the whole trick.

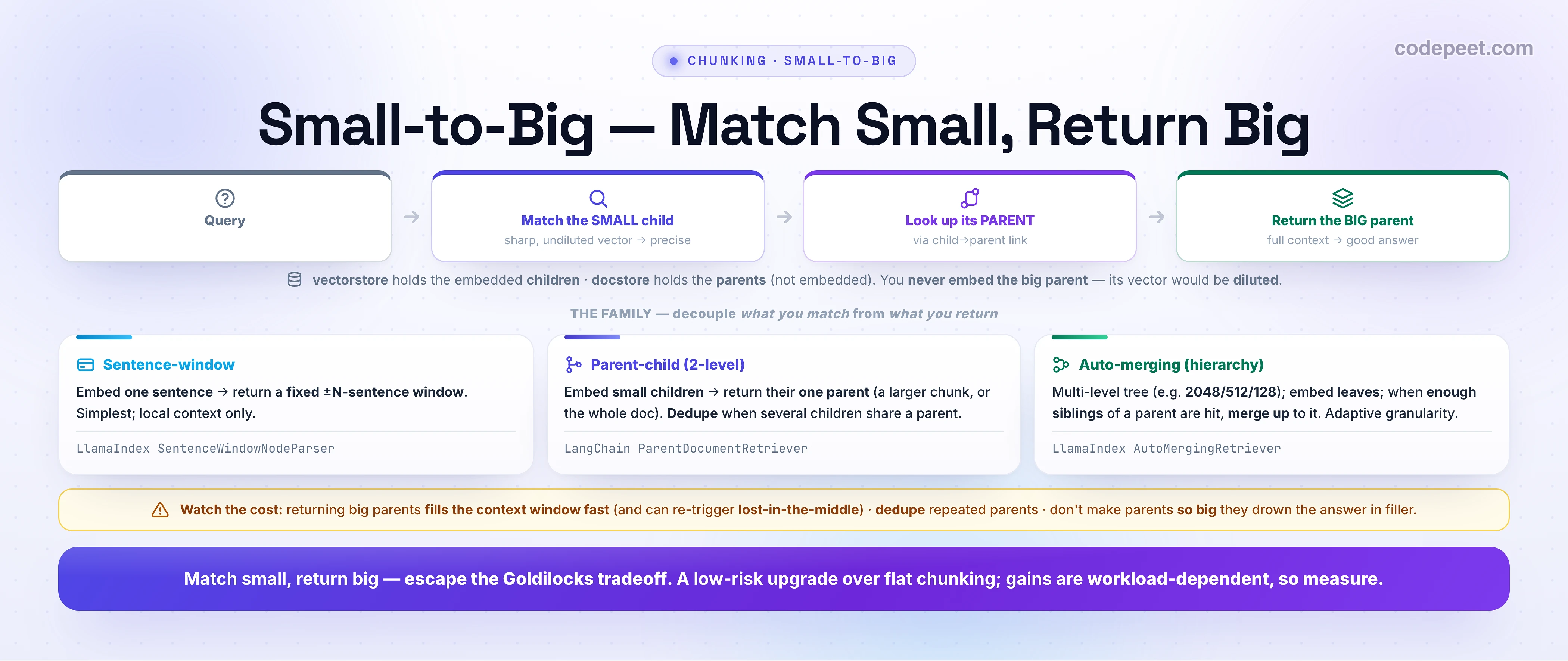

An infographic titled 'Small-to-Big — Match Small, Return Big'. A top flow shows four steps: Query, then Match the SMALL child (a sharp, undiluted vector for precise matching), then Look up its PARENT via a child-to-parent link, then Return the BIG parent to the LLM for full context and a good answer. A note says the vectorstore holds the embedded children while the docstore holds the parents (not embedded), and you never embed the big parent because its vector would be diluted. Below, THE FAMILY — decouple what you match from what you return — shows three variants. Sentence-window: embed one sentence, return a fixed plus-or-minus N-sentence window; simplest, local context only (LlamaIndex SentenceWindowNodeParser). Parent-child, two-level: embed small children, return their one parent (a larger chunk or the whole document), and dedupe when several children share a parent (LangChain ParentDocumentRetriever). Auto-merging, hierarchy: a multi-level tree such as 2048/512/128, embed the leaves, and when enough siblings of a parent are hit, merge up to it — adaptive granularity (LlamaIndex AutoMergingRetriever). A warning strip: watch the cost — returning big parents fills the context window fast and can re-trigger lost-in-the-middle, dedupe repeated parents, and don't make parents so big they drown the answer in filler. A banner reads: match small, return big — escape the Goldilocks tradeoff; a low-risk upgrade over flat chunking, but gains are workload-dependent, so measure.

See It: Match Small, Return Big

Below, pick a query. The system scores every small child and highlights the best match (a sharp, precise hit). Then toggle what actually reaches the LLM — just that child, or its whole parent section:

Pick a query — the system matches the most similar SMALL child (sharp vector), then toggle what reaches the LLM: just that child (precise but context-starved) vs its whole PARENT (precise match + full context).

Flip between the two modes and watch the tradeoff resolve. Child-only is precise but the LLM sees a lone sentence — fine for "how long do refunds take?", but useless for "can I get a refund and how?" where the answer is spread across sibling sentences. Parent (small-to-big) keeps the exact same precise match but gives the LLM the full surrounding context. Sharp matching and complete context — the Goldilocks tradeoff, dissolved.

Parent-Child Retrieval (2-Level)

The canonical implementation is LangChain's ParentDocumentRetriever: define a child splitter (small, embedded) and optionally a parent splitter (large, returned).

from langchain.retrievers import ParentDocumentRetriever
from langchain.storage import InMemoryStore
from langchain_text_splitters import RecursiveCharacterTextSplitter

# Two splitters: small children to MATCH on, larger parents to RETURN.
child_splitter  = RecursiveCharacterTextSplitter(chunk_size=400)    # embedded → precise
parent_splitter = RecursiveCharacterTextSplitter(chunk_size=2000)   # returned → context
# (Omit parent_splitter entirely → the parent is the WHOLE original document.)

retriever = ParentDocumentRetriever(
    vectorstore=vectorstore,       # stores the embedded CHILD chunks
    docstore=InMemoryStore(),      # stores the PARENT docs, looked up by id (NOT embedded)
    child_splitter=child_splitter,
    parent_splitter=parent_splitter,
)
retriever.add_documents(docs)      # splits into parents → children, links child→parent, embeds children

docs = retriever.invoke("how long do refunds take?")
# matches the small child, then returns its larger PARENT — and DEDUPES:
# if 3 children of the same parent match, you get that parent ONCE, not three times.

Two things to internalize:

Two modes. Provide a parent_splitter → parents are larger chunks (e.g. child 400 / parent 2000). Omit it → the parent is the entire original document. Whole-document parents are simplest but the most context-hungry (see pitfalls).
Automatic dedup. If three children of the same parent all match your query, you get that parent back once — not three near-identical copies. This is essential, and it's handled for you here; in a hand-rolled pipeline you must dedupe parents yourself.

This single retriever swap — children in the vectorstore, parents in a docstore — is often the biggest quality jump you can make over flat chunking, for very little code.

Auto-Merging Retrieval (Multi-Level Hierarchy)

Parent-child has exactly two levels. Auto-merging (LlamaIndex) generalizes it to a hierarchy and adds a clever adaptive step. HierarchicalNodeParser builds nodes at several sizes — by default 2048 → 512 → 128 — where each small leaf links up to a mid node, up to a big node. Only the leaves are embedded.

from llama_index.core.node_parser import HierarchicalNodeParser, get_leaf_nodes
from llama_index.core.retrievers import AutoMergingRetriever

# A hierarchy of sizes — each leaf links up to a mid node, up to a big node.
parser = HierarchicalNodeParser.from_defaults(chunk_sizes=[2048, 512, 128])
nodes = parser.get_nodes_from_documents(docs)
leaf_nodes = get_leaf_nodes(nodes)          # ONLY the leaves get embedded

# index leaf_nodes in a vector store; keep all nodes in a docstore...
base = index.as_retriever(similarity_top_k=6)
retriever = AutoMergingRetriever(base, storage_context, verbose=True)
# If a majority of a parent's leaf children are retrieved, it MERGES them up
# and returns the single parent node instead of the scattered leaves.

The auto-merge is the new idea: after retrieving leaf chunks, the retriever checks each parent — if enough of a parent's leaf children were retrieved (a majority/threshold), it merges them up and returns the single parent instead of the scattered leaves; otherwise it keeps just the leaves. So granularity becomes adaptive:

A query answered by one spot → you get tight, focused leaves.
A query whose answer is spread across a section → the section's leaves all fire, and they auto-merge into the whole parent — consolidating fragments into coherent context.

Parent-child vs auto-merging vs sentence-window — the same principle (match small, return big) at three granularities: sentence-window returns a fixed ±N-sentence window (local, simple); parent-child returns a fixed parent (2 levels); auto-merging dynamically chooses how far up the tree to go (multi-level, adaptive). Start with parent-child; reach for auto-merging when documents have deep, meaningful hierarchy (long structured reports, books).

The Pitfalls (Where It Bites)

Small-to-big is low-risk, not no-risk. Three failure modes to engineer around:

Context-window cost — the big one. Returning large parents fills your context budget fast. If your top-k children come from different parents, you now return several big parents — which can blow the budget, spike cost/latency, and re-trigger lost-in-the-middle (L87) as the prompt balloons. Mitigate: keep k small, rerank before fetching parents, and size parents deliberately.
Oversized parents. If the parent is the whole document (or a giant section), a precise child match can drag in pages of irrelevant filler — diluting the answer and wasting tokens. Prefer bounded parent chunks (e.g. ~2000 tokens) over whole-doc parents unless documents are short.
Dedup. Multiple matched children sharing a parent must collapse to one parent. The library retrievers do this; hand-rolled pipelines often forget, sending the same parent three times.
Extra infrastructure. You now run a docstore alongside the vector store, and re-ingestion must keep child→parent links consistent.

The Honest Take: How Much Does It Help?

Small-to-big is widely recommended and intuitively sound — it directly removes the precision-vs-context compromise, and it's a sensible default upgrade over flat chunking, especially for documents with natural structure (sections, sub-sections).

But be precise about the evidence, because the internet isn't. You'll see blog posts claim things like "parent-child improves accuracy 15–30%" — treat that as marketing, not a finding. It traces to no rigorous primary benchmark; don't repeat it as fact. The honest picture in 2026:

Rigorous, public head-to-head benchmarks are thinner than the hype, and results are workload-dependent.
One peer-reviewed point of data (an EHR discharge-QA study): auto-merging 79.5% vs sentence-window 74.5% instruction accuracy — real, but a single domain; don't over-generalize.
As with chunking generally (L92), gains here are often smaller than switching to a better embedding model or adding reranking.

Practitioner stance: adopt small-to-big as a strong default because it's low-risk, cheap to implement, and principled — but validate the lift on your retrieval eval (recall / faithfulness) rather than trusting a quoted percentage. It composes well: rerank the children, then fetch parents; combine with hybrid search. It's a building block of a good stack, not a silver bullet.

🧪 Try It Yourself

Drive the widget, then reason about production:

In the interactive, choose a query and compare Child only vs Parent. For which kind of question does child-only give a complete answer, and for which does it fall short? Why does the parent mode fix it without changing what was matched?
Why would embedding the parent directly (instead of the children) make retrieval worse? Tie it to L90.
You set parents = whole documents (some are 40 pages). Retrieval is precise but answers are vague and your token bill explodes. What two changes do you make?
A teammate cites a blog: "parent-child boosts accuracy 25%, let's ship it everywhere." What's your response?
When would you choose auto-merging over plain parent-child?

→ (1) A single-fact lookup is fine child-only; a question whose answer is spread across sibling sentences needs the parent. Parent mode keeps the same precise child match but returns surrounding context — matching and answering were decoupled. (2) The parent covers many ideas, so its embedding is a diluted average (L90) and matches any specific query weakly — you'd lose precision. Embed small (sharp), return big. (3) Switch to bounded parent chunks (~2000 tokens) instead of whole docs, and lower k / add reranking so you don't return several huge parents. (4) That 15–30%/25% figure is unsourced marketing — adopt small-to-big because it's principled and low-risk, but measure the lift on our own eval; the real gain is workload-dependent and may be modest. (5) When documents have deep, meaningful hierarchy (long structured reports/books) so answers live at varying granularities — auto-merging adapts how far up the tree to merge; parent-child is fixed at two levels.

Mental-Model Corrections

"The chunk I match must be the chunk I return." No — decouple them. Match a small child (precision); return the big parent (context). That's the entire idea.
"Just embed bigger chunks for more context." Bigger embedded chunks dilute the vector and hurt matching (L90). Embed small, return big.
"Parents get embedded too." Only children are embedded; parents live in a docstore and are fetched by id. Embedding parents would defeat the purpose.
"More/bigger parents = better answers." Big parents fill the context window, raise cost, and can re-trigger lost-in-the-middle. Bound parent size; keep k small; dedupe.
"Parent-child, auto-merging, and sentence-window are unrelated." Same principle at three granularities: fixed window (sentence-window) → fixed parent (parent-child) → adaptive hierarchy (auto-merging).
"It boosts accuracy 15–30%." Unsourced. Real gains are workload-dependent — adopt it as a sound default, but measure on your eval.

Key Takeaways

Small-to-big = match small, return big. Embed small children (sharp, precise vectors) but return the larger parent to the LLM (context) — dissolving the Goldilocks tradeoff.
Two stores: a vectorstore of embedded children + a docstore of parents (never embedded). Match child → follow child→parent link → return parent.
Parent-child (2-level) — LangChain ParentDocumentRetriever; parent = a larger chunk or the whole doc; dedupes shared parents automatically.
Auto-merging (multi-level) — LlamaIndex hierarchy (2048/512/128); embed leaves; merge up to a parent when enough of its children are retrieved → adaptive granularity. Sentence-window is the fixed-window cousin.
Pitfalls: big parents eat the context window (cost + lost-in-the-middle), dedupe parents, don't make parents too big, and you run an extra docstore.
Honest take: a low-risk, principled default — but the "15–30%" claims are unsourced; measure the lift on your own eval, and remember embeddings/reranking often matter more.
Next: contextual retrieval & late chunking — instead of changing what you return, we change what each chunk's vector knows about the rest of the document.
