Quorum Intuition, Revisited

The wreckage of the last lesson had one survivor. Every naive strategy died in one of two graves (stuck forever, or two answers), but through every crash, one thing never betrayed you: the minority side never decided anything. The split cluster stalled on the small side and decided on the big side. The tiebreak from Network Partitions & Split Brain worked. The quorum reads and writes of the data course worked.

This lesson pays the handoff exactly as promised: why that's true (a proof short enough to carry in your head), why it's almost enough (majorities are the venue for every protocol that survives), and exactly what's still missing (two ingredients, both arriving in the next lessons). By the end, the one honest tool in the wreckage becomes a tool you can size, defend in a design review, and, just as important, refuse to over-trust.

The data course proved this once for reads and writes, and the proof is worth re-meeting now that lives depend on it. Quorums: N, R, W put it in one line: it's the pigeonhole principle: you cannot put more pigeons into fewer holes without doubling up.

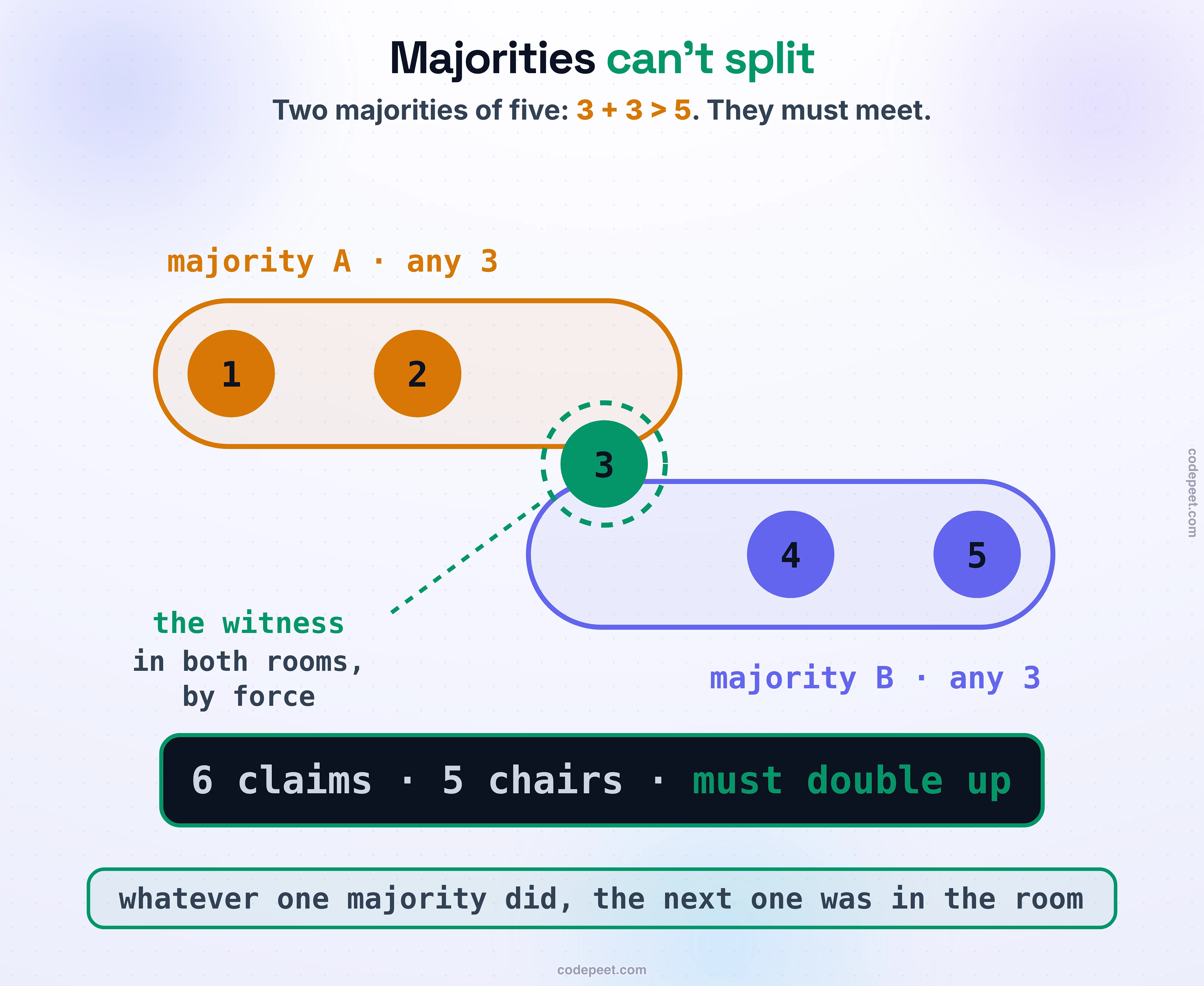

Take five machines. A majority is any three. Try to build two majorities that share nobody: three seats plus three seats is six claims on five chairs. Impossible: any two majorities of the same cluster share at least one member. That shared member is called the witness, and it is the entire foundation of everything this stretch will build: whatever one majority did, at least one member of the next majority was in the room when it happened.

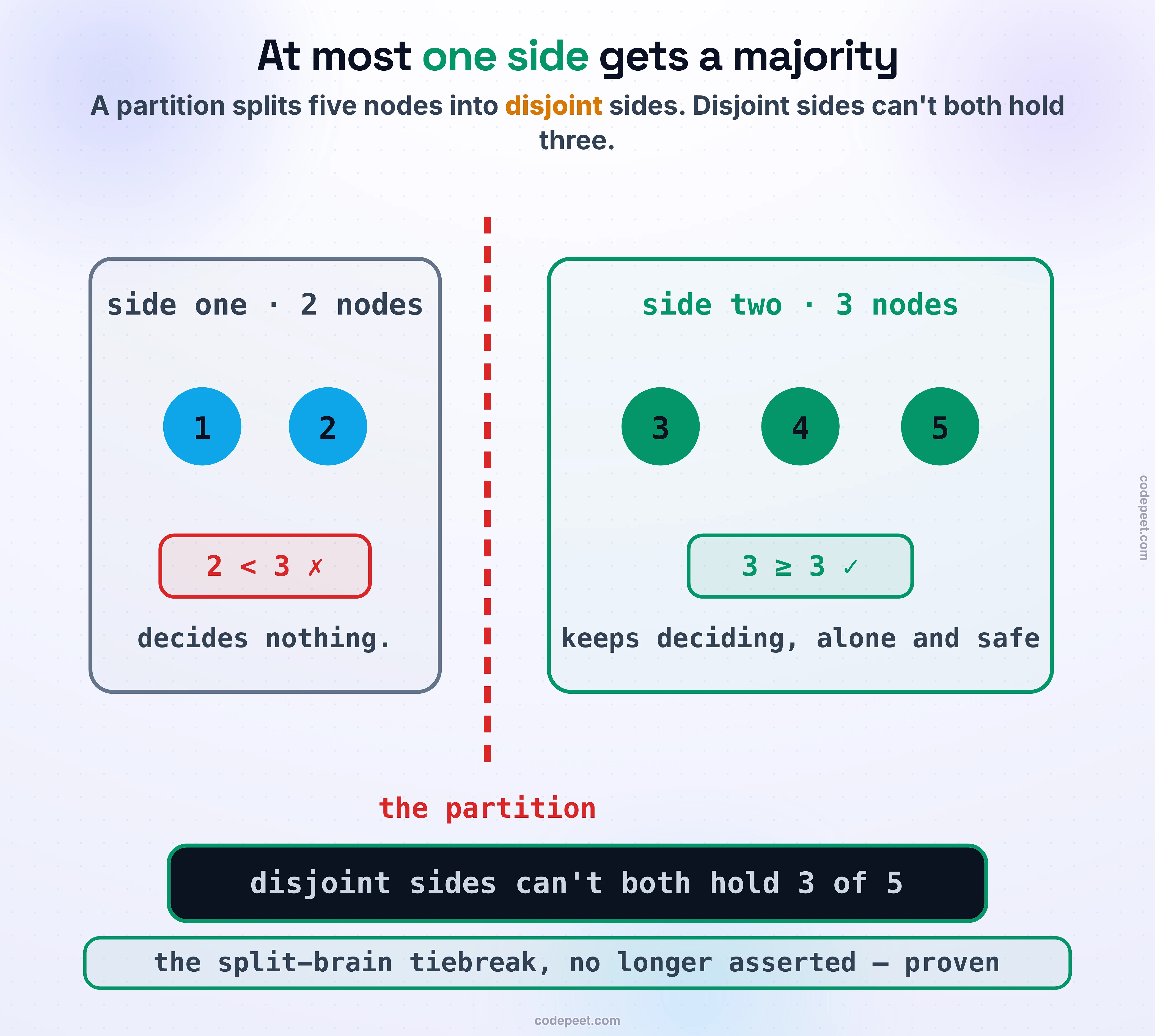

Now the corollary that explains your survivor. A partition splits the cluster into disjoint sides — five nodes, split 2 and 3, or 1 and 4. Disjoint sides can't both hold three of five: at most one side of any partition can form a majority. That's the split-brain tiebreak from the failure lessons, no longer an assertion but a one-line proof. The minority side of the consensus breaker didn't stall out of politeness; it stalled because arithmetic left it nothing to stall with.

One upgrade from the data course's version: reads-overlapping-writes needed R + W > N. Decisions need the write-write case — any two deciding quorums must intersect — and majorities are simply the cleanest family of sets that all pairwise intersect. Same pigeonhole, higher stakes.

The proof turns into a sizing rule you'll use for the rest of your career.

To survive f crashed machines, run N = 2f + 1. A majority of 2f+1 is f+1, which still exists with f machines dead. Three nodes ride out one death; five ride out two; seven ride out three.

Even sizes buy risk, not safety. A majority of four is three, so a four-node cluster tolerates exactly one death, the same as three nodes, while adding one more machine that can fail and a brand-new failure mode: the clean 2–2 split where neither side has a majority and everyone stalls. This is why coordination clusters come in odd sizes, and why the split-brain lesson's fix for two-node pairs was a witness node — a cheap, vote-only member whose entire job is to make the count odd.

Quorum is also why you don't require everyone. Demand all N and any single death stalls the world: you've rebuilt the dictator's grave with more hardware. Majorities are the compromise the arithmetic endorses: strict enough that two can't disagree, loose enough that the cluster keeps deciding with a minority dead. That pairing (never two answers, still one answer with f dead) is safety and liveness shaking hands.

And bigger is not free. Seven nodes tolerate three deaths, but now every decision waits for four acknowledgements across the fleet's slowest links. Production coordination clusters overwhelmingly run three or five, and that's a considered choice, not a budget accident.

Arithmetic claims deserve an adversary. The prover below arranges the cluster in the worst way the numbers permit, every time you move a slider.

Try this first: five nodes, two quorums of three. Watch the adversary try to pull them apart and fail — one node glows in both rings, because six claims on five chairs must double up. Now shrink one quorum to two: the adversary instantly separates them and the verdict burns red. Two-plus-three on five chairs fits without touching, and what fits, an adversary will eventually arrange.

Then read the scoreboard. Set the majority preset and step N through 3, 4, 5: tolerance goes 1, 1, 2: the fourth machine added a failure and bought nothing, the odd-even lesson in one glance. Try the data course's read-write preset and watch the same pigeonhole wear its older clothes. And press the all-of-N trap: overlap is total, tolerance is zero — the dictator, rebuilt with extra steps.

One thing the prover deliberately shows: the witness node is forced by count, not chosen. Move the sliders and watch which node glows; it shifts. You never know in advance who the witness will be; you only know there must be one. Hold that thought for the next section.

Now the honest boundary, because the last lesson already showed you a quorum failing.

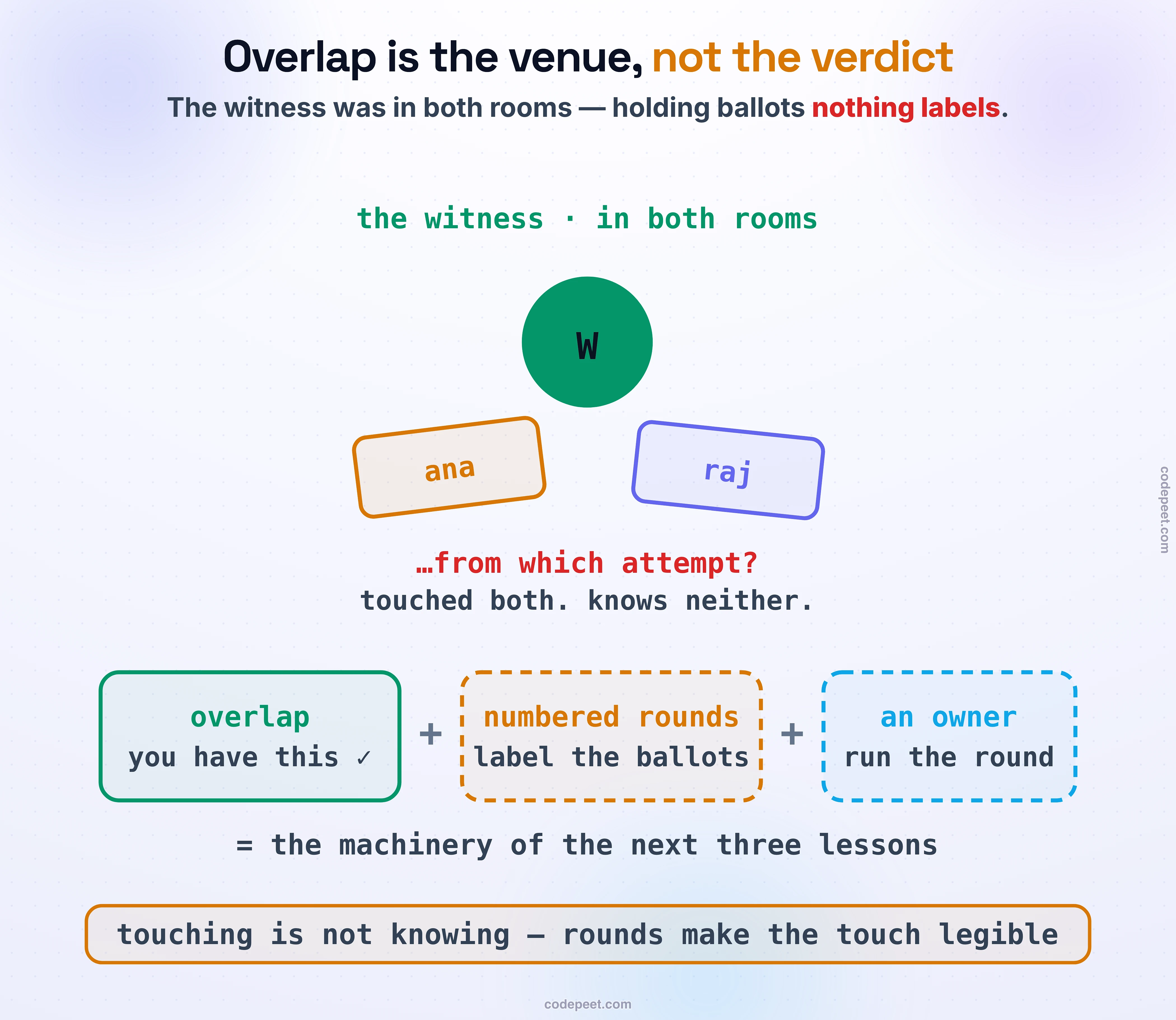

Rewind the consensus breaker's subtlest wreck: the vote-with-retries strategy. Every “majority” in that disaster overlapped — the pigeonhole did its job, the witness was in both rooms. It broke anyway, and the data course named the reason long before you got here: a quorum guarantees you touch a node that was there. Touching is not knowing. The witness held ballots from two attempts, and nothing on those ballots said which attempt they belonged to. Its old vote completed a new majority, and the ticket sold twice — overlap intact, agreement gone.

So overlap is the venue, not the verdict. To make the witness's knowledge usable, every protocol that actually works adds the same two ingredients:

1. Rounds with numbers. Every ballot carries its attempt number, so a stale vote is recognizably stale. You've already trusted this shape once — the fencing token from the split-brain lesson, authority as a number that only goes up, and the coming lessons give it its proper names: terms, ballots, epochs.
2. An owner per round. Someone has to run attempt N (collect the ballots, speak the verdict) or concurrent proposers re-create the same interleaved chaos with better bookkeeping.

Overlap + numbered rounds + an owner — that's the whole recipe, and you now hold the first ingredient with a proof attached. The recipe's remaining lines are the next three lessons.

• Two majorities must share a member: pigeonhole, not luck. Six claims on five chairs double up. The shared member is the witness, and it's the foundation of every protocol ahead.
• At most one side of a partition can hold a majority. The split-brain tiebreak, proven in one line. The minority side stalls because arithmetic leaves it nothing else.
• Size with 2f + 1. Three survives one, five survives two. Even sizes buy risk, not safety: a fourth machine adds a failure mode and no tolerance; a witness node adds oddness cheaply.
• Don't require everyone. All-of-N rebuilds the dictator; majorities are safety and liveness shaking hands.
• Overlap is the venue, not the verdict. Touching is not knowing: a witness with unlabeled ballots still double-decides. The missing ingredients are numbered rounds and an owner per round.

An owner per round. Which means the cluster must somehow pick that owner — one node, agreed by everyone, despite failures. If that sounds suspiciously like the problem we're trying to solve, good: that circularity is real, it has a clean escape, and it's next — Leader Election.
