Cell-Based Architecture & Deployment Stamps

Multi-Region Patterns gave you a powerful move: run in more than one region, and the loss of a whole region stops being the end of the world. Your worst-case blast radius shrank from everything to one region. That's a real win, and for most of this course it would be a fine place to stop.

But look closely at what a region still is. It's one enormous shared system, and the failures that hurt most in practice were never lost data centers — those are rare. The common killers are a bad deploy that ships a crash to every server at once, a poison request that trips the same bug everywhere, a single hot customer whose traffic saturates a shared pool, a slow memory leak that fills every box on the same schedule. None of those respect a region boundary. Because everything in the region shares the same code, the same database, the same fate, a problem that starts anywhere spreads to everyone. The region is big, but it fails as one thing.

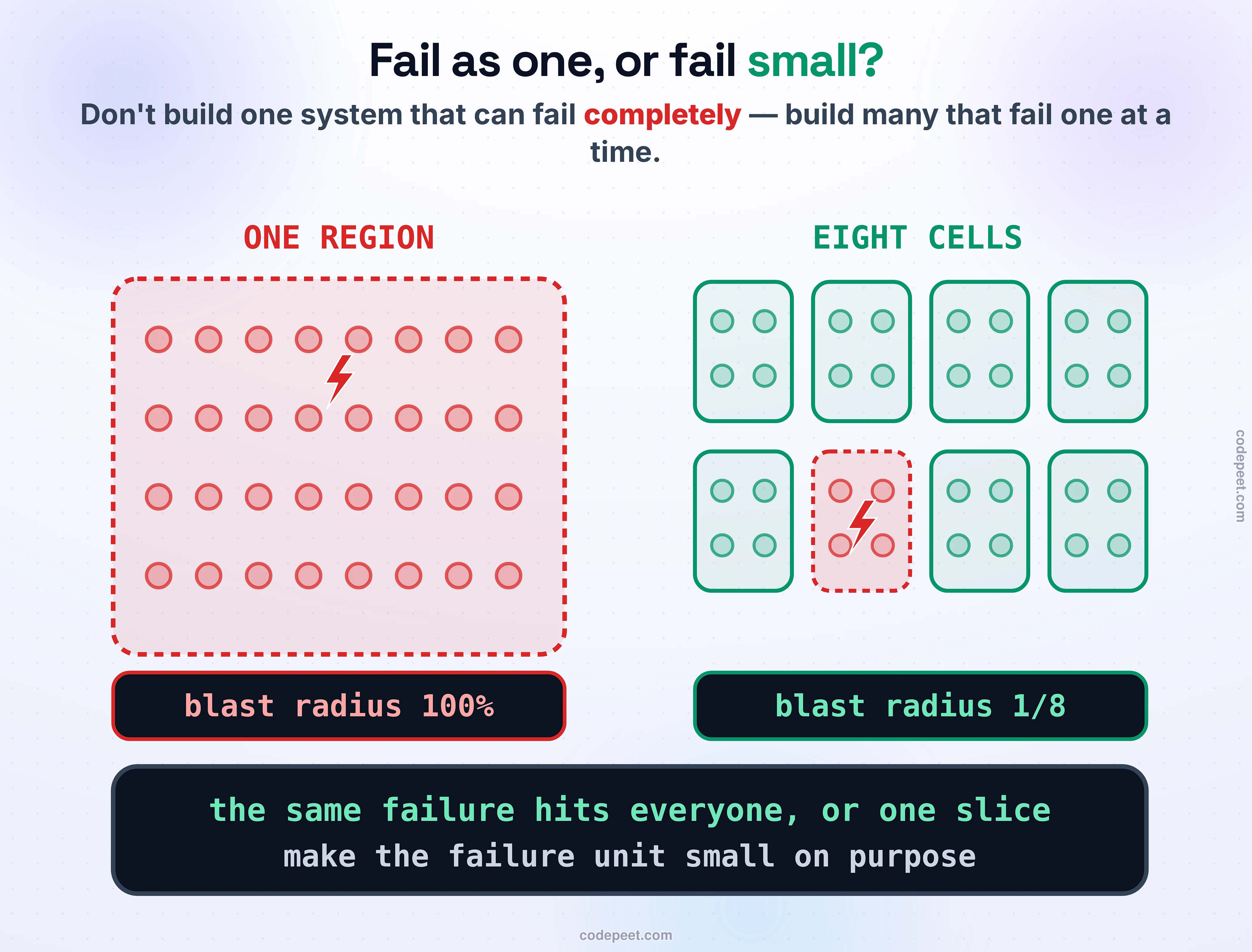

This lesson is about making the failure unit small on purpose. Instead of one big system per region, you build many small, identical, independent copies of the whole system — cells — and give each one a slice of your users. When something breaks, it breaks inside one cell, and only that cell's slice notices. You are no longer trying to prevent failure; you've accepted that it will happen and engineered it to be small. This is blast radius by design, and it is how the largest services on earth stay up.

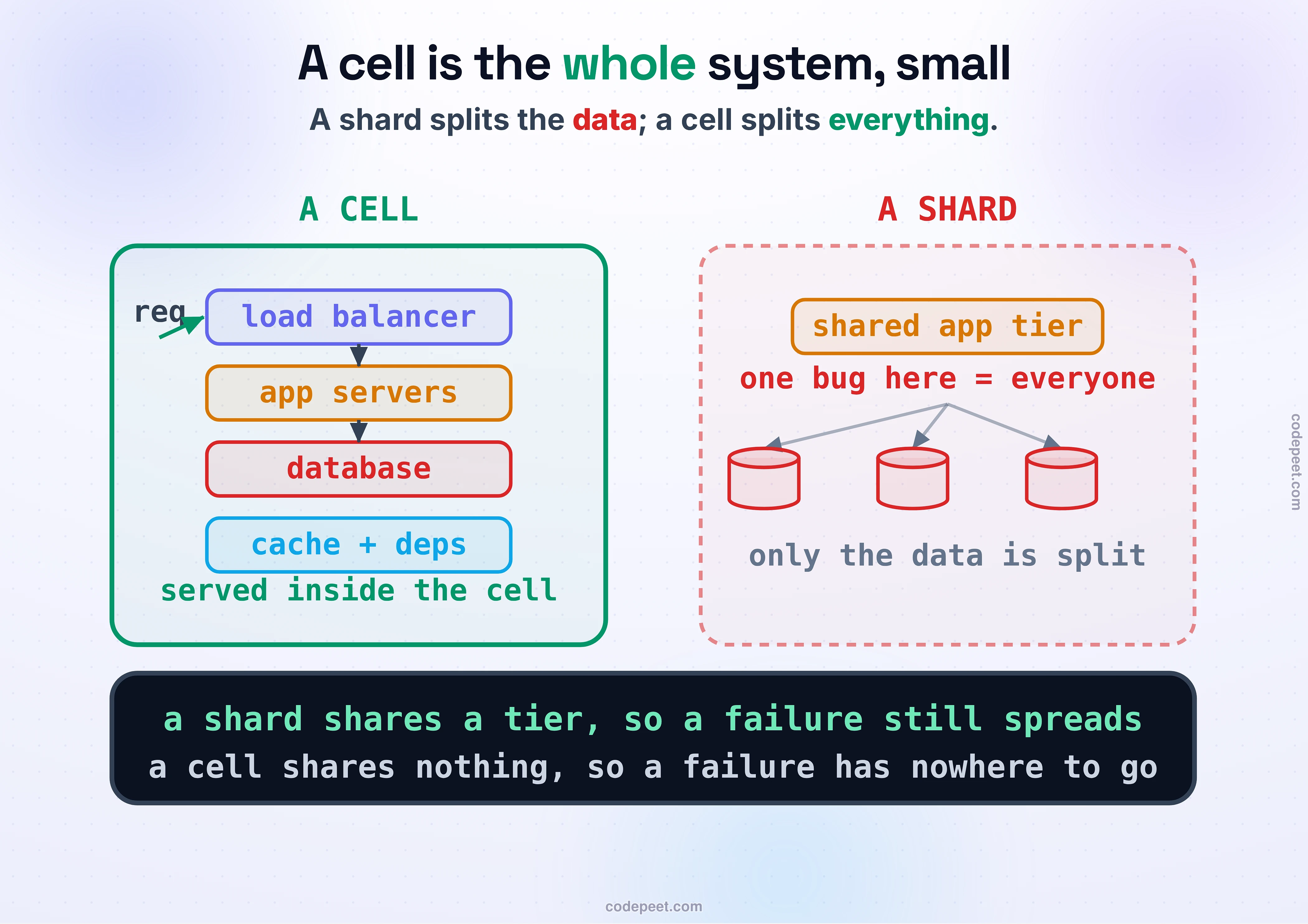

A cell is a complete, self-contained copy of your entire system, sized to serve a slice of your traffic and nothing more. The word complete is the whole point. A cell has its own load balancer, its own application servers, its own database, its own cache, its own copy of every dependency it needs. A request that lands in a cell is served start to finish inside that cell and never reaches out to another one. Cells share no state, no database, no thread pool, no anything — which is exactly why a fire in one can't spread to the next.

This is what separates a cell from the sharding you met in Partitioning vs Sharding. Sharding splits the data: you break the database into pieces, but all those pieces usually sit under one shared application tier, so a bug or an overload in that shared tier still takes down every customer at once. A cell splits everything — compute, data, and dependencies together — so there is no shared tier left to take everyone down. It's the same instinct as Bulkheads, pushed to its final rung: that lesson isolated a thread pool, then a connection pool, then a process; a cell isolates the entire application, top to bottom, as one sealed compartment.

And crucially, you scale by adding cells, not by growing them. When a cell fills up, you don't give it a bigger database; you stamp out another identical cell and route new users to it. Each cell stays a known, tested, bounded size — which means you always know exactly how much of your world one failing cell can take with it. Growth becomes replication, and replication keeps the blast radius fixed no matter how big you get.

There's one thing cells can't do for themselves: decide which cell a given request belongs to. Something has to sit in front and send each request to the right place, and that something is the cell router. It takes a partition key off each request — most often the customer or tenant id — and maps it to a cell, usually by hashing the key and reducing it to a cell number, the same key-to-node idea you built in Consistent Hashing. Then it forwards the request, and its job is done.

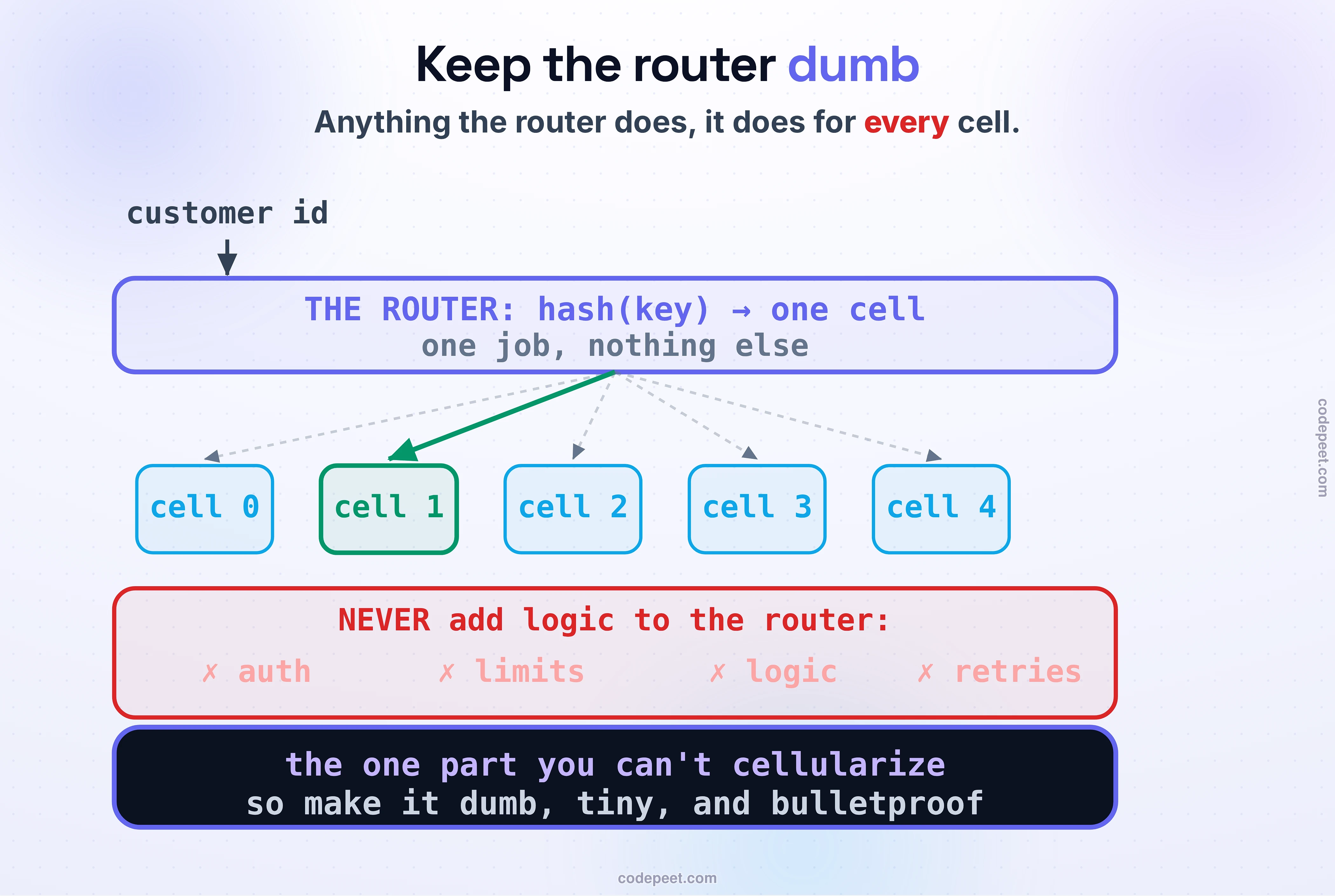

Here is the single most important rule in this entire architecture: the router must be dumb. The router is the one component every cell shares, the one piece you could not cellularize, and that makes it the system's one true single point of failure. So anything you add to it, you add to the blast radius of everything. Put authentication in the router and an auth bug takes down all cells at once. Put rate limiting in it and a rate-limiter overload — the kind you studied in Rate Limiting: Token Bucket, Leaky Bucket, Windows — becomes a total outage. Put retries or business logic or a database lookup in it and you've quietly rebuilt the very monolith you were trying to escape, with a new everything-fails-together part bolted to the front. The discipline is ruthless: the router does exactly one thing, map a key to a cell, and it does it with the least code, the fewest dependencies, and the most redundancy you can give it. Dumb, tiny, and bulletproof — because it's the only part that can still take the whole system down.

Now the payoff, stated as a number. In one shared system, the scope of impact of almost any failure is 100%: the bad deploy, the poison request, the resource leak — each one hits the single shared thing that everyone depends on. Split the system into N cells, and that same failure now hits one cell, so its scope of impact is 1/N. Ten cells turn a total outage into a 10%-of-users outage; a hundred cells turn it into 1%. You haven't made failures less likely — you've made each one dramatically less expensive, and in the arithmetic of Availability & the Nines, a failure that touches a tenth of your users for an hour costs a tenth of the downtime.

This is also the structural cure for the disease you dissected in Cascading Failures. A cascade spreads because components share resources: a slow dependency fills a pool that a healthy feature also needed, and the failure climbs the call graph. But cells share nothing. A cell that is melting down cannot exhaust a pool in the cell next door, because there is no shared pool; it cannot redistribute its load onto its neighbors and tip them over, because the router keeps sending each customer only to their own cell. The death spiral has nowhere to propagate. All the runtime defenses from that section — timeouts, breakers, bulkheads, shedding — still live inside each cell to keep it healthy, but the cell wall is the last and hardest bulkhead: even if one cell loses all of those fights and dies completely, the failure is already contained.

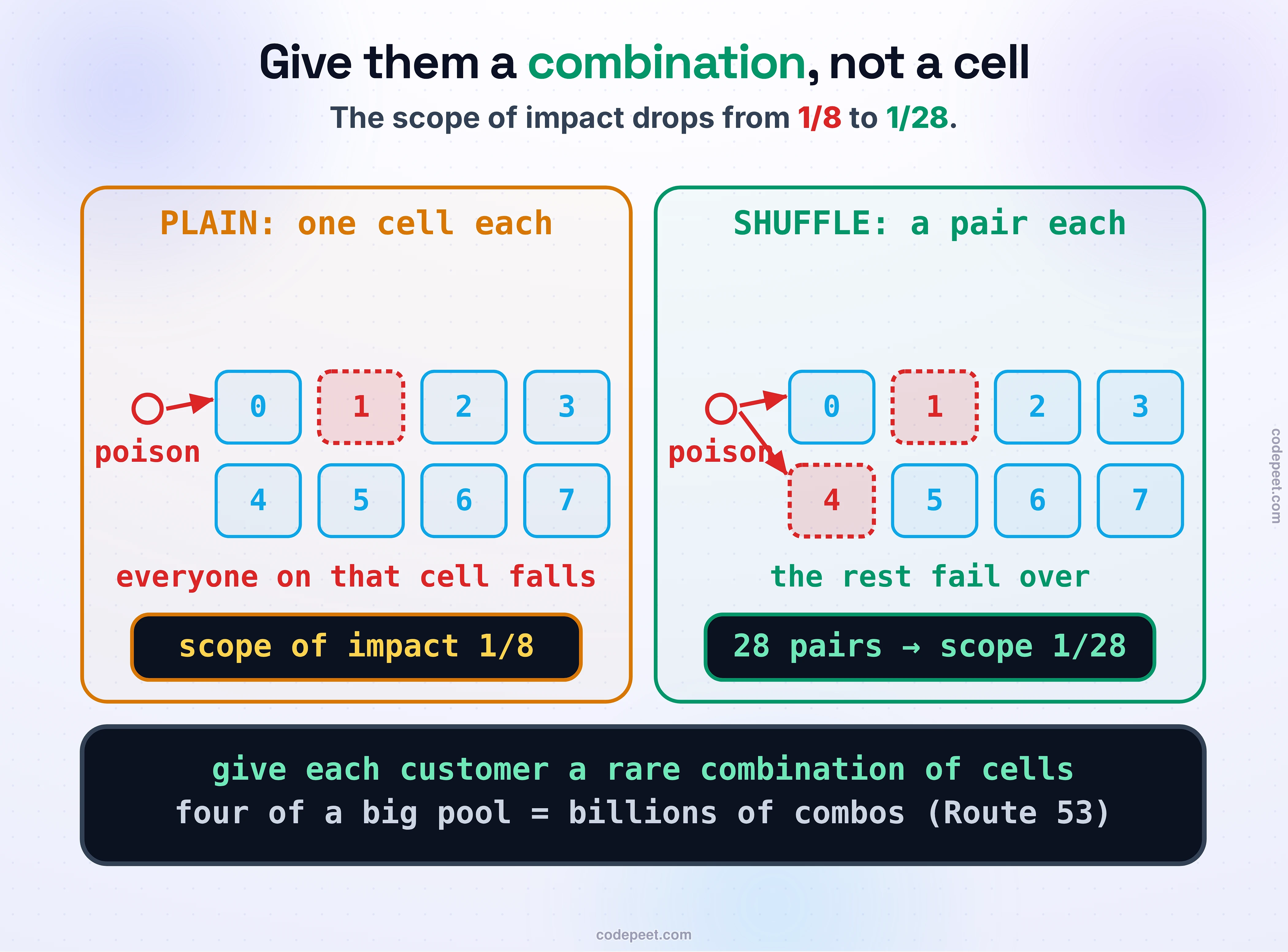

Plain cells have one weakness left. If every customer is pinned to exactly one cell, then a single poisonous customer — one sending a request that trips a bug, or a flood that saturates their cell — takes down everyone else who shares that cell. With ten cells, that's still 10% of your customers knocked out by one bad neighbor. We can do extravagantly better, with a trick from AWS called shuffle sharding, and it is the most beautiful idea in this lesson.

Instead of giving each customer one cell, give them a small random combination of cells — a virtual shard of, say, two cells out of eight — and send their requests across that pair. The magic is pure combinatorics: with eight cells there are twenty-eight different pairs, so two customers picked at random almost never get the same pair. Now watch what happens when a poisonous customer melts down. They damage their two cells — but any other customer overlaps those two cells in at most one of their own, so every other customer still has a healthy cell to fall back to. As long as their client retries the other endpoint, the tools from Idempotency: Safe to Retry, they stay up. The only customers fully taken down are the rare few who happened to draw the exact same pair, and that's just one shuffle shard out of twenty-eight. The scope of impact drops from 1/8 to 1/28.

And it scales absurdly. The general formula for the fraction of customers who share a poisoned customer's entire shard is 1 over N-choose-K — the number of cells choose the shard size. Amazon's Route 53 gives every customer domain four name servers out of a large pool, which works out to over 730 billion possible combinations, so effectively no two customers share a fate and one customer's attacker is almost no one else's problem. You didn't add a single cell; you just handed out rare combinations instead of single cells, and turned a shared-fate system into an almost-perfectly-isolated one. The console below lets you feel it: poison a customer under plain assignment, then under shuffle sharding, and watch the blast radius collapse as you widen the pool.

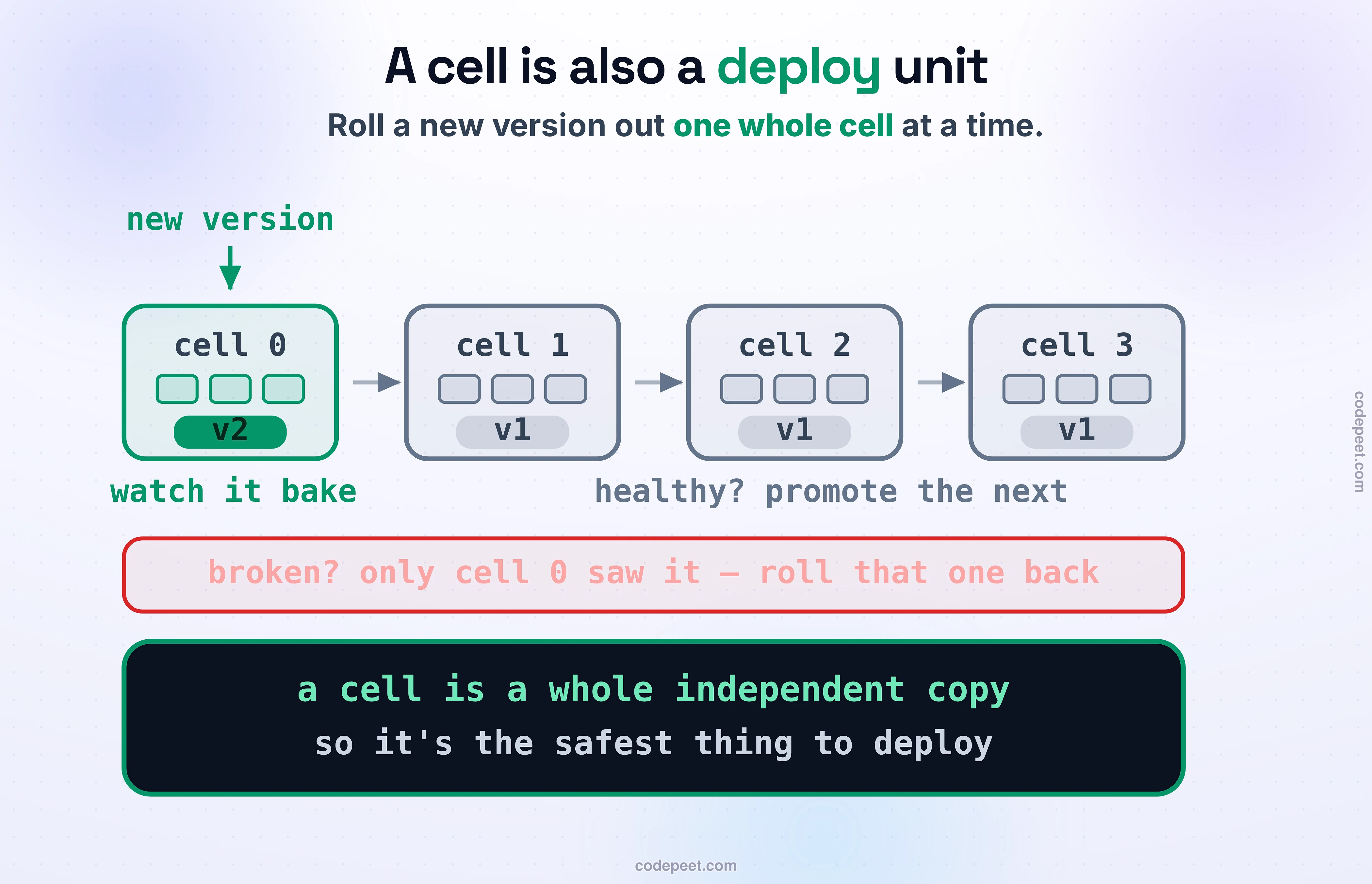

Once your system is built from independent cells, you get a second superpower almost for free, and it's the reason this lesson's title pairs the two ideas. Microsoft's Azure calls a cell a deployment stamp (you'll also hear scale unit or service unit), and the name captures what a cell is good for beyond fault isolation: because each cell is a whole, independent, self-contained copy of the stack, it is also the safest possible unit to deploy.

Think about how this changes a release. In Rolling, Blue-Green, Canary you canaried a new version by sending a small percentage of traffic to it inside one shared system. With stamps you do something cleaner: you roll the new version out to one entire cell first, let it bake with that cell's real customers while every other cell stays on the old version, and watch. If it's healthy, you promote the next cell, and the next, at whatever pace you trust — a canary at the granularity of a complete stack copy, where a bad release can only ever reach the one cell you've upgraded so far. If it's broken, one cell's worth of customers saw it, and you roll that single cell back. The same mechanism gives you deployment rings: put customers who want the newest features onto an early stamp and cautious enterprise customers onto a later one, and each ring gets updates at its own cadence. And because you scale by stamping out more cells, every new stamp is another deploy target and another bounded blast radius, all at once.

Cells are not free, and pretending otherwise is how teams get burned. The costs are real and worth naming plainly:

• The router is your single point of failure. Everything above was about keeping it dumb for a reason: it is the one thing that can still take the whole system down, so it gets your most paranoid engineering — maximum redundancy, minimum logic, and its own obsessive testing.
• Cross-cell operations are the enemy. The moment a feature needs to read or coordinate across cells, you're fighting the isolation that makes cells worth having. There are no cheap cross-cell joins and no global transactions; a report that needs every customer has to fan out to every cell and stitch the answers together. The art is designing so that a normal request never needs another cell, and keeping a customer's data pinned to their own cell.
• Cell sizing is a real decision. Too big, and a failing cell takes a painful slice of your users with it — the blast radius creeps back up. Too small, and you drown in the operational overhead of running hundreds of copies. You pick the size by load-testing how many customers one cell can safely hold, and you hold that line as you grow.
• Moving customers between cells is hard. A quiet customer becomes a whale, or a cell runs hot, and you need to migrate a tenant to another cell or give them one of their own. Copying live data and redirecting traffic without downtime is genuinely difficult, and the teams who do cells well build that migration machinery early, before they desperately need it.

None of this is a reason to avoid cells; it's the price of the guarantee they give you. You trade a harder architecture and real operational discipline for a system where no single failure can ever take down more than a slice — and at scale, that trade is one of the best in all of distributed systems.

• A cell is the whole system in miniature. Its own compute, data, and dependencies, serving one slice, sharing nothing — so a failure inside it has nowhere to spread. Scale by adding cells, not growing them, and the blast radius stays fixed.
• The router is the one shared part, so keep it dumb. Map a key to a cell and nothing else; every ounce of logic you add to it becomes a system-wide single point of failure.
• Cells turn total outages into partial ones. A failure's scope of impact drops from 100% to 1/N, and because cells share nothing, they structurally stop the cascade.
• Shuffle sharding makes isolation nearly perfect. Hand each customer a rare combination of cells instead of one, and the scope of impact collapses from 1/N to 1/(N-choose-K) — one bad neighbor can no longer take you down.
• A cell is also the safest unit to deploy. Roll a new version out one whole cell at a time; a bad release can only reach the cells you've upgraded.

Cells contain a failure to a slice — a stunning defense against your neighbors' problems. But notice the one failure they don't stop: your own data going bad. If a bug writes corruption, or a migration mangles a table, the cell faithfully persists it, and the router loyally sends that customer right back to their poisoned cell every time. Isolation protects you from other people's failures, not from your own bytes rotting. For that you need something older and humbler — a copy of the truth from before the damage, and the confidence that you can actually put it back. That is Data Integrity: Backups That Restore.
